Simple & robust
Gemsa model HPV drill rigs are designed for high operational efficiency with easy handling and mostly suitable for blast-hole production drilling in quarries, open-pit mining and construction work.
It is based on proven and tried technology with simple design, which ensures continuous and uninterrupted operation ,even in the harshest conditions.
Fine control of drilling functions
* Rig allows greater flexibility in positioning.
* Simple: Low maintenance costs and operator friendly
* Ergonomic design operator panel with manually operated hydraulic control valves
* Proven: High productivity in the field, reliable and durable, long service life.
Drilling operation
Down the hole drilling. Hole diameter : 90-95 mm (3,5 - 3,74 in)
Drilling depth : 40m (130ft)

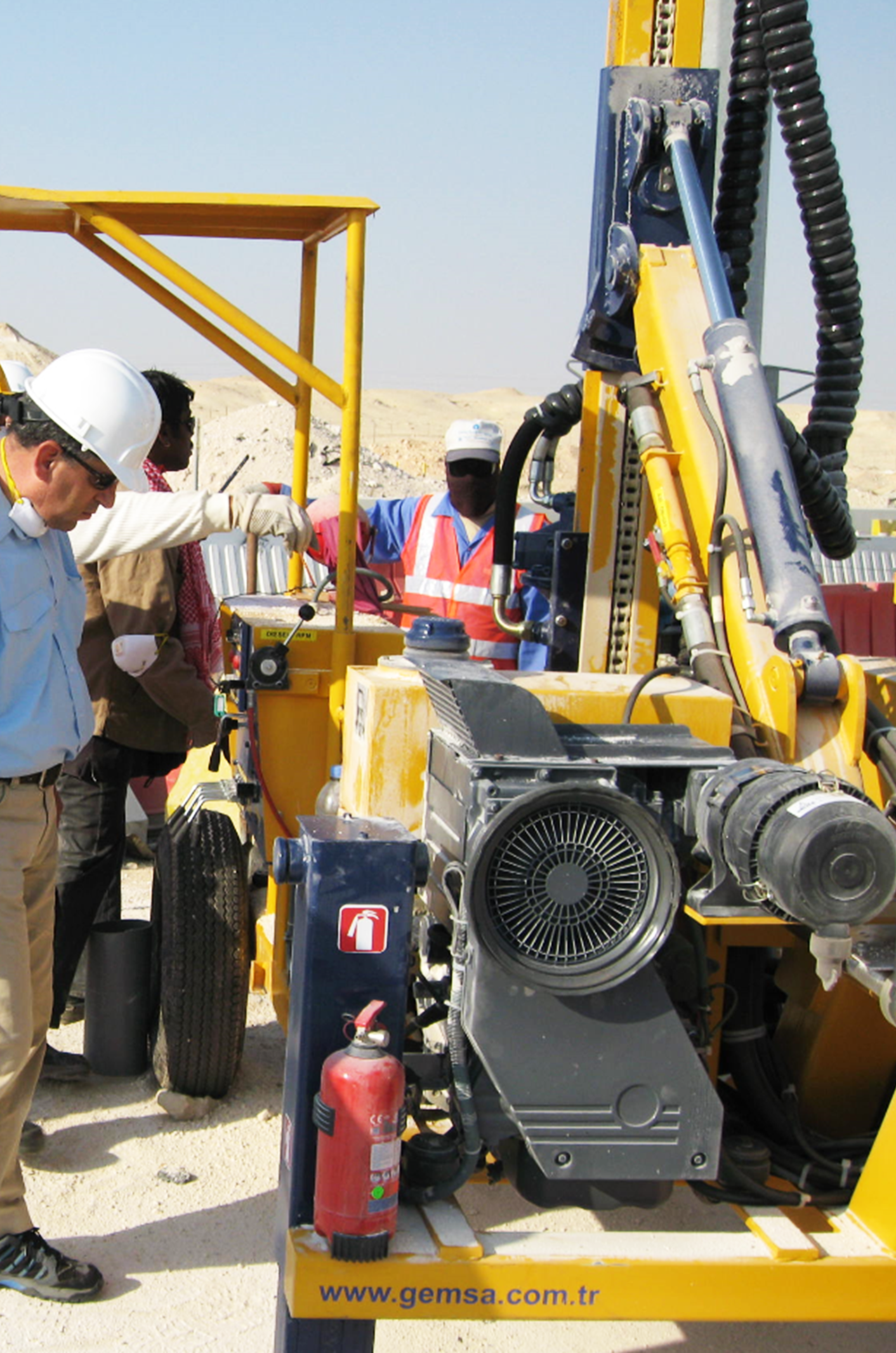

Most efficient power
DEUTZ 3-cylinder engine with inline turbocharging with an integrated oil cooling system. Best cold starting properties even under extreme conditions. The engines in the power range < 56 kW meets to the US EPA Tier 4 i. All parts for maintenance on one side of the engine, long oil change intervals and easy changing of engine fluids reduce the running costs and increase the availability of the machinery.An efficient injection system and optimized combustion ensure optimum engine performance at low consumption.

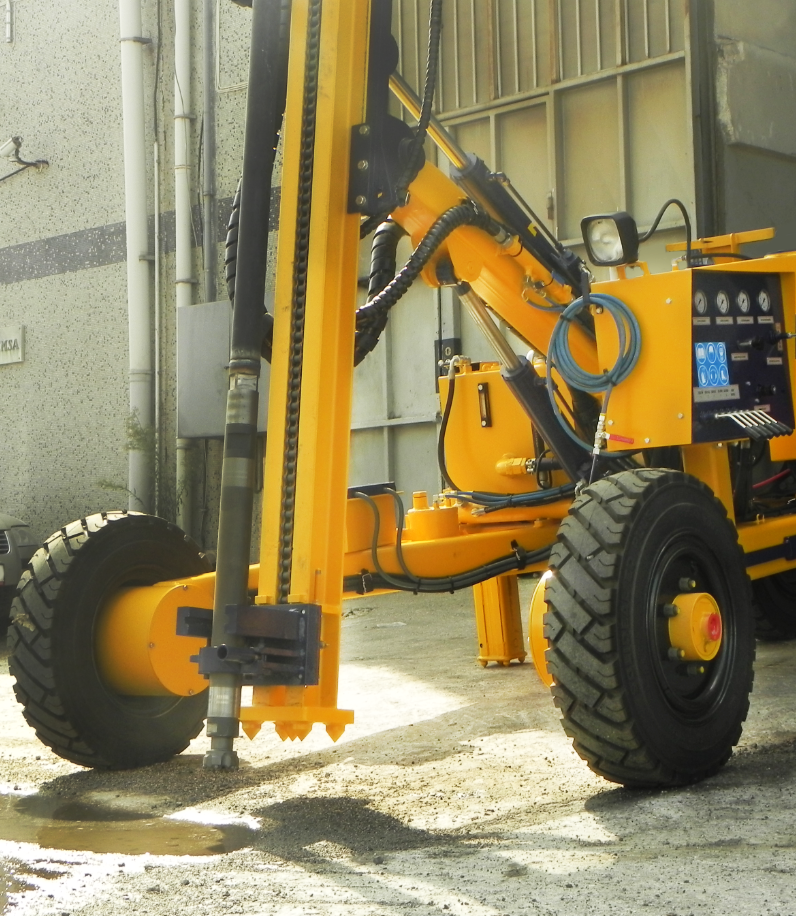

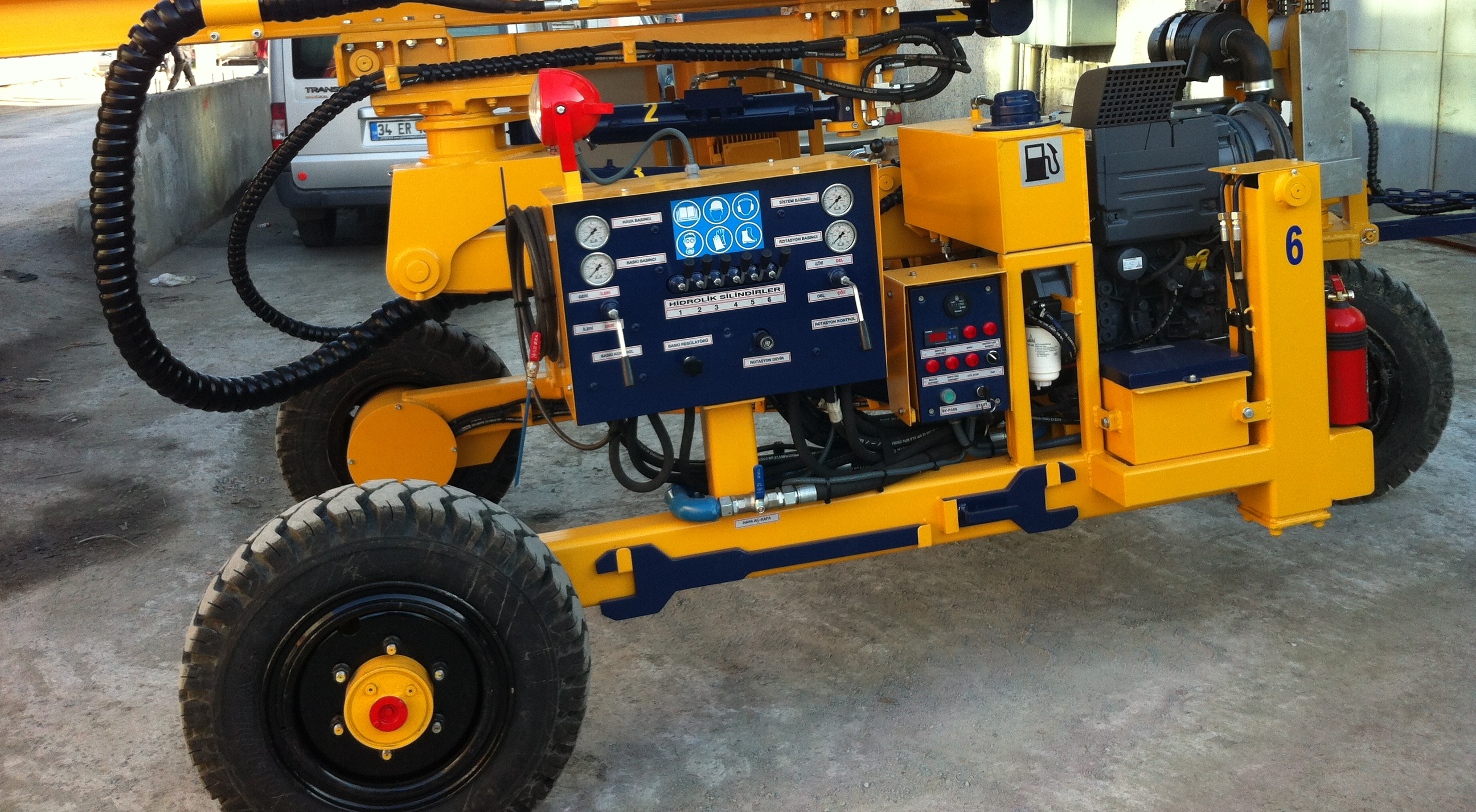

3x3 Wheel drive
An independent three-wheel drive system helps provide traction on rough terrain. Traction system is pilot control from backside platform and from drilling control panel.
Negative brake release for towing.
Easy to maintain and service.
All service points can be easily accessed and maintained.
Drill head - Rotation
GEMSA DW model drill head , cradlesupported with rollers
Driven by hydraulic torque motor.
Torque: 1.020Nm@ 100rpm
Feeding system
Negative brake planetary gearbox with hydraulic torque motor
Feeding stroke 2.500 mm (8,2ft)
Pull back force 25 kN - 2,5 tones @ 160 bar (5.620 lbf @ 2.321 psi)
Features & Options
Extensive range of standard features and options to increase your productivity!
