( without air compressor )
Gemsa’s well known down-the-hole drill rig redesigned for your surface blasting projects.
More strong , More flexible.

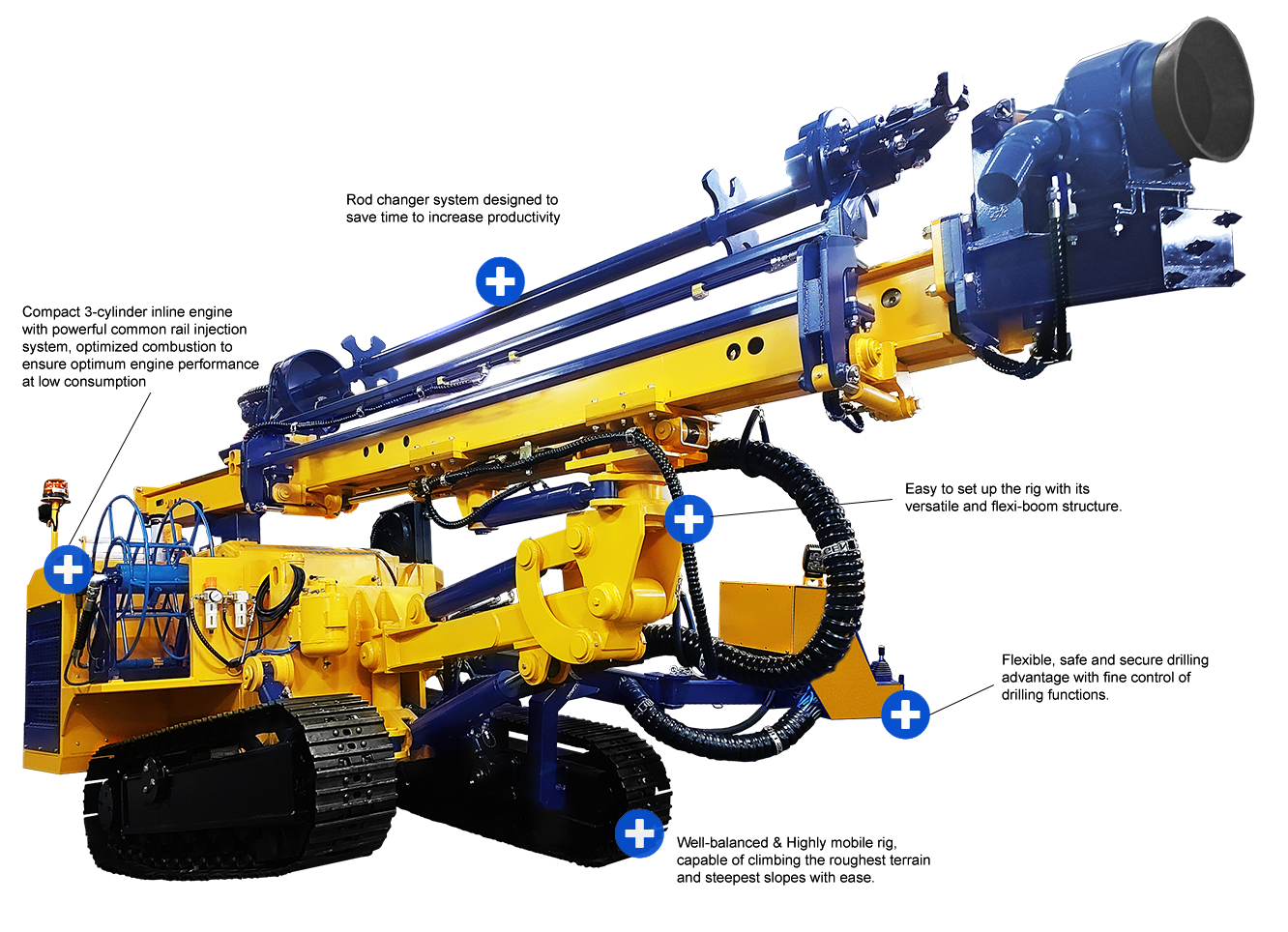

Rokomobil offers a comfortable operating environment with solutions that enable seamless interaction of man and machine with adding smooth interaction of the modern control systems with simple icon displays, carefully designed ergonomic features and excellent visibility. Thanks for the independently oscillating crawler unit , rig can operate in even the most rough, mountainous terrain and limits mobilization time on site.
ROKOMOBİL
Main application area : Surface Mining ; Quarrying. (Blast hole drill)
Drilling method : Down the hole
Drilling depth capacity :
Hole dia : 90-100mm (3 1/2 in - 3.9in) ( 3” hammer)
Hole depth : 30 mt - 99 ft (3”hammer)
Hole dia : 108-127mm (4.25 in- 5 1/2in) (4” hammer)
Hole depth : 24mt - 79 ft (4”hammer)
Traction : Dual speed oscillated tracks.
Engine : Deutz 45 kW ( 60.5 hp ) * StageV / Stage 3
Feed type : Negative brake planetary gearbox.
* Feed type : Hydraulic cylinder 2024 model
Rod length : 3 m ( 9,84ft ) - 4 pcs on Rod changer magasine*
Pull force : 25 kN ( 5.620 lbf )
Pull back speed : 30 m/min ( 98,43 ft /min )
Rotation max. torque : 1.248 Nm ( 920 lbf ft ) * standard drill head.
Rotation max. torque : 1.674 Nm (1.234 lbf ft) * optional drill head.
These depts can be achived suitable auxiliary air compressor
Reliability in flexible drilling
Rokomobil is designed for high productivity with low operating cost and capable of taking on the most demanding rock blasting projects. It is based on proven and tried technology with simple design, which ensures continuous, uninterrupted operation ,even in the harshest conditions.
Thanks for uncomplicated and user friendly ergonomic layout control panel, it makes much more simple to operate and maintain the rig, provides increased levels of safety and operational flexibility with low overall cost of ownership.
