E-power

Electric Powered Compressor onboard drill rig

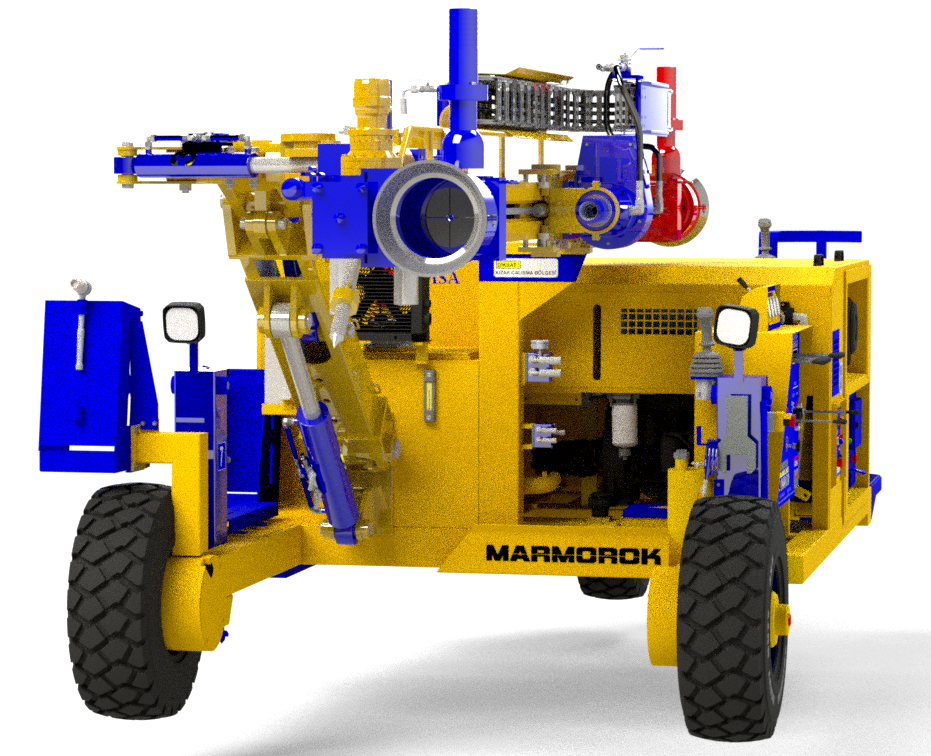

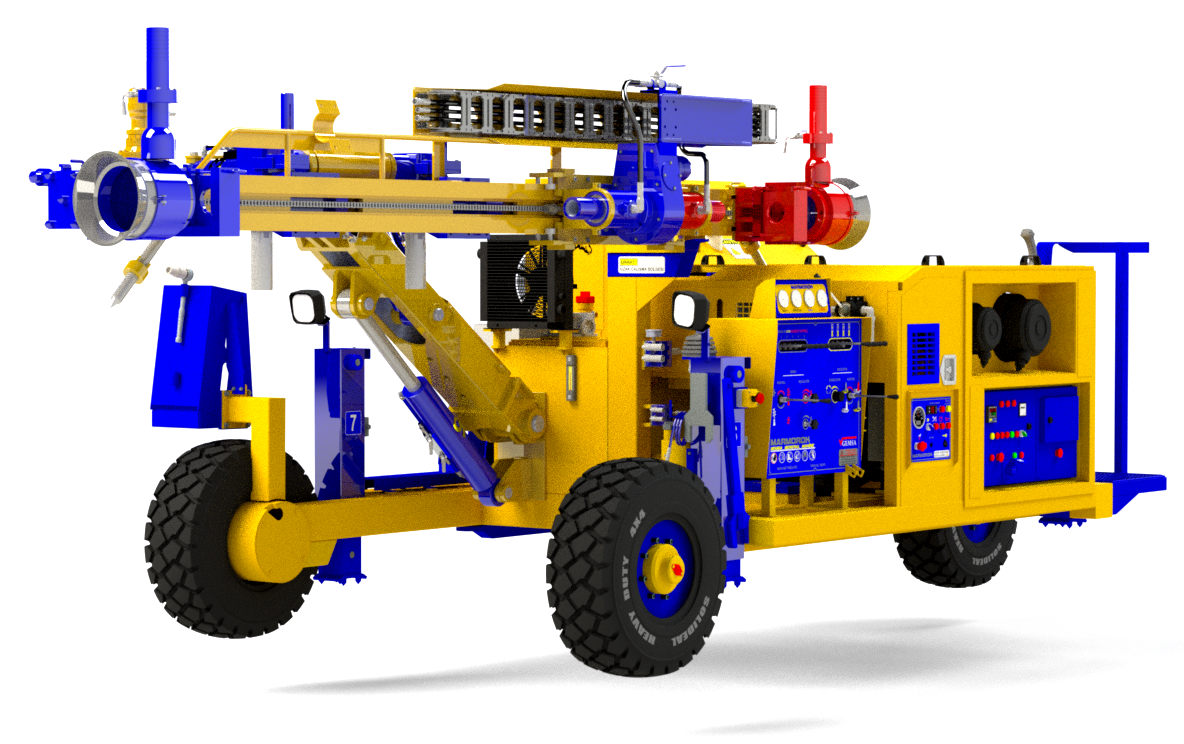

Marmorok EC is Gemsa’s surface DTH drill rig, equipped with electric powered onboard air compressor , is designed especially for local marble quarries and also suitable for granite and limestone. Rig is build as a high production anchor and capable of taking on the most demanding projects and also complying with all important safety standards. It is based on proven and tried technology with simple design, which ensures continuous and uninterrupted operation ,even in the harshest conditions.

Drilling Depth Guidelines

^{Hole Diameter Ø : 90 mm ( 3.5 in)}

^{Hole Depth : 40 m ( 130 ft )}

^{Drilling Method : DTH ( Down the hole )}

^{DTH Hammer : 3 in}

^{Onboard Air Compressor :}

^{Drive Motor : Electric / Efficiency Class : IE3 - IE4}

^{Air Supply : 12-13 bar (174-188.5 psi)-7 m3/min (247 cfm)}

^{Built for Flexibility}

We know that today's mining industry is a big challenge. To increase the productivity of a quarry, machines should drill fast but secure.

Gemsa’s Marmorok EC series surface down the hole drill rigs designed especially for marble quarries and also perfect choice for limestone operations.

Your new work mates ensure continuous and uninterrupted operation with improved safe working environment, even in the harshest conditions. Machines can drill vertical to horizontal ( with minimum ground clearance on horizontal drill) and also inclined. Comfortable operating environment with solutions that enable seamless interaction of man and machine with adding smooth interaction of the modern control system with simple icon displays, carefully designed ergonomic features and excellent visibility.

1- Smooth drilling

High productivity and smooth drilling even in soft, cracked formations.

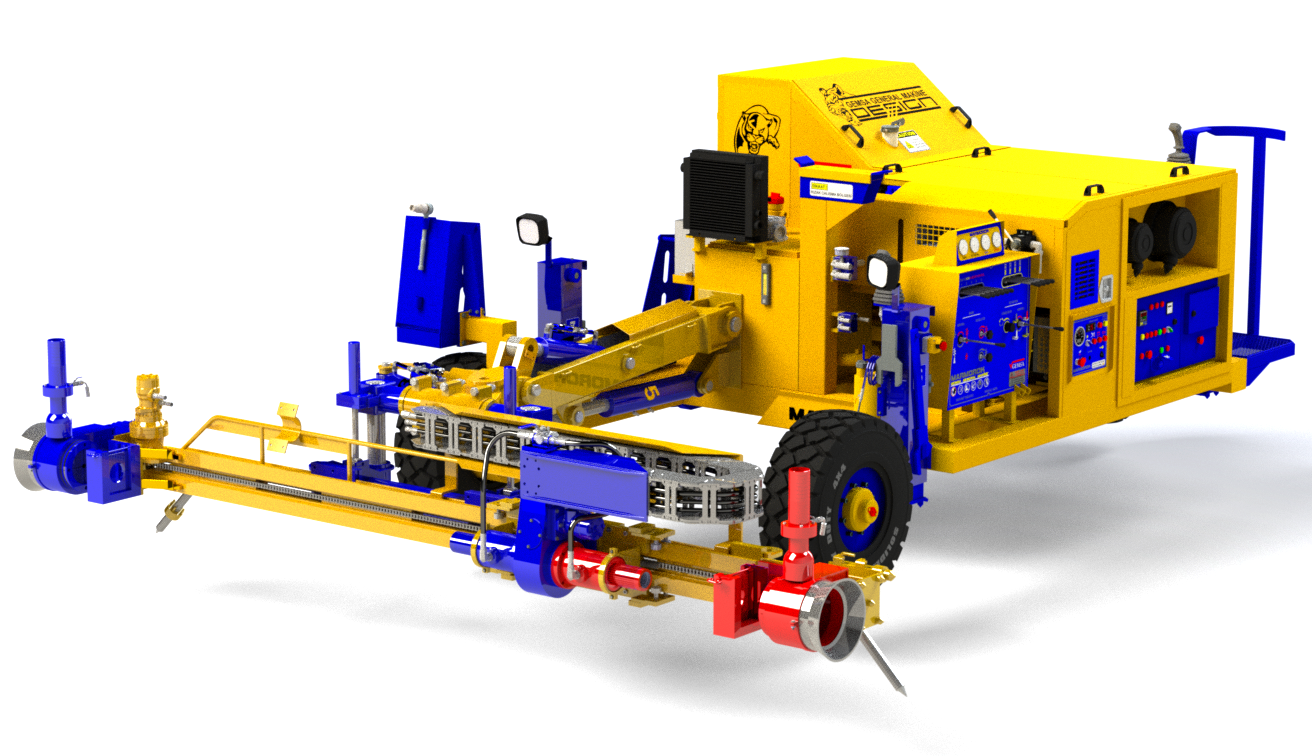

2- Great boom coverage, flexible drilling

Easy to set up the rig with its versatile and flexi-boom structure. It is capable of drilling exceptionally good in straight, vertical as well as horizontal holes. Thanks for Gemsa’s creative solution for drill head, it saves time by both way drill and increase productivity. �

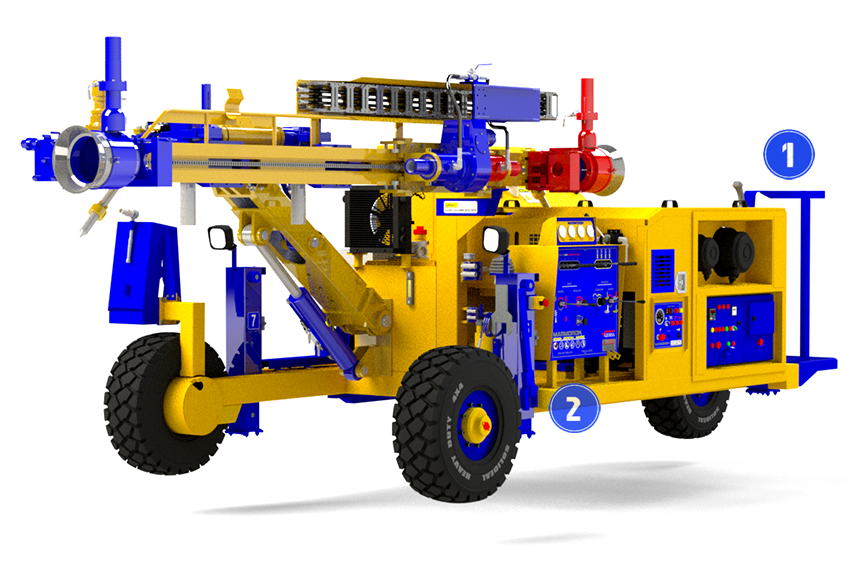

Frame Assy - Undercarriage

^{Weight of the Rig : 6.5 t - (14.330 lb)}

^{Length with mast : 4.500 mm (14,7 ft)}

^{Width : 2.350 mm (7.66 ft)}

^{Height : 2.300 mm (7.5 ft )}

^{High Strength & Durability.}

Rig build with frame parts ST52 -S355J2H is a hot-finished, non-alloy, fine grain steel , making it suitable for heavy-duty applications. Impact resistance: S355J2H exhibits good toughness and impact resistance, which is important for structures subjected to dynamic loads. Compliance with standards: It conforms to the European standard EN 10210, ensuring consistent quality and performance.
Marmorok's all profiles certificated.

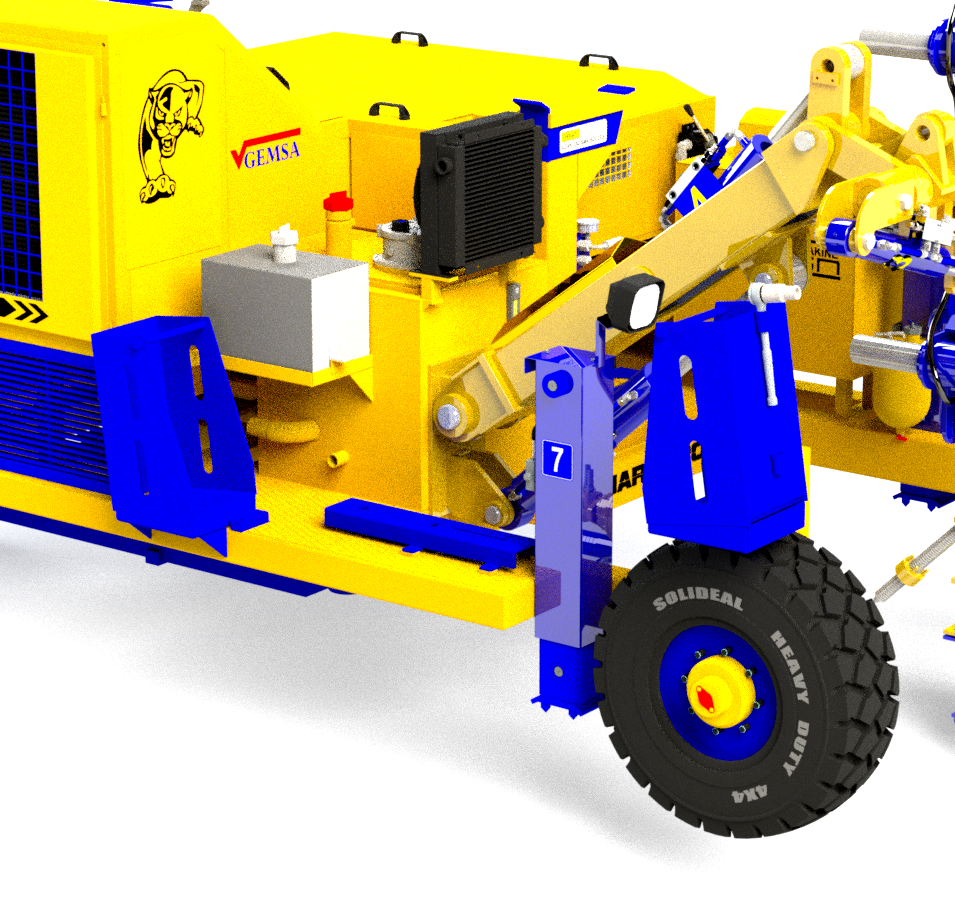

^{3x3 - Independent Wheel Drive}

Gemsa design three wheel drive system, Rig can move quickly and steady over the most rough terrain , has greater maneuverability. Ease of relocating the drills between drill sites. For long tramming on site , gearboxes have manual brake release, and gives advantage for towing purpose.

Traction can control from back operator standing platform and near drill control panel gives advantage to position rig for drilling.

1- Compact

Especially designed for marble quarries. Rig is build as a high production anchor and capable of taking on the most demanding projects and also complying with all important safety standards.

2- Excellent tramming stability

Well-balanced & Highly mobile rig, capable of climbing the roughest terrain and steepest slopes with ease. Three high-torque tramming motors and skid steering improve mobility.

3- Easy to maintain and service

Rig is designed so all service points can be easily accessed and maintained. Quick access to main hydraulics and power pack components make maintenance procedures much more simple.

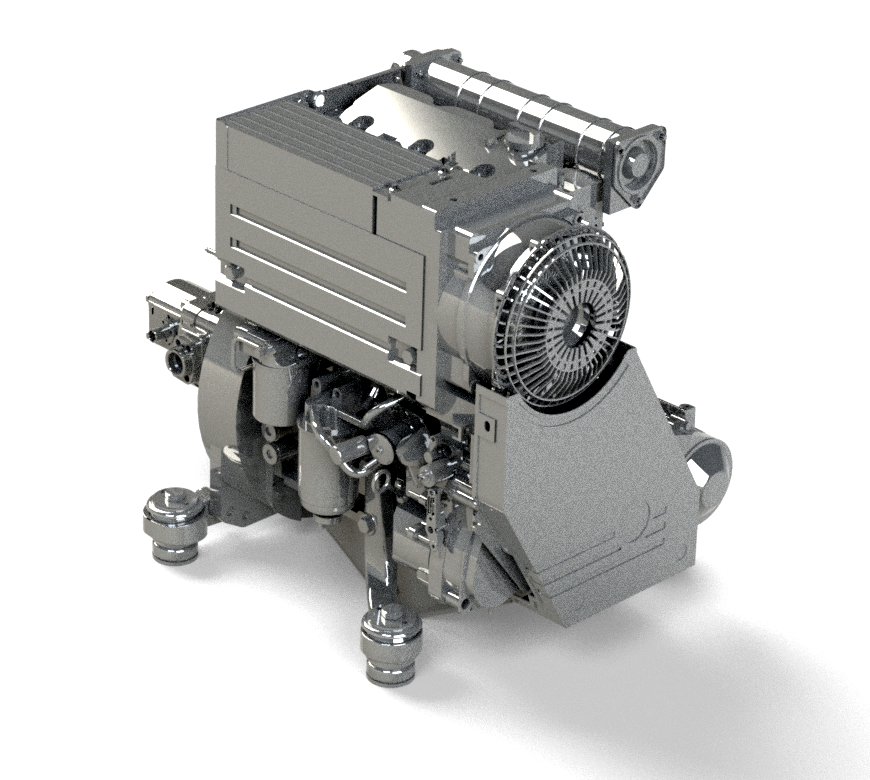

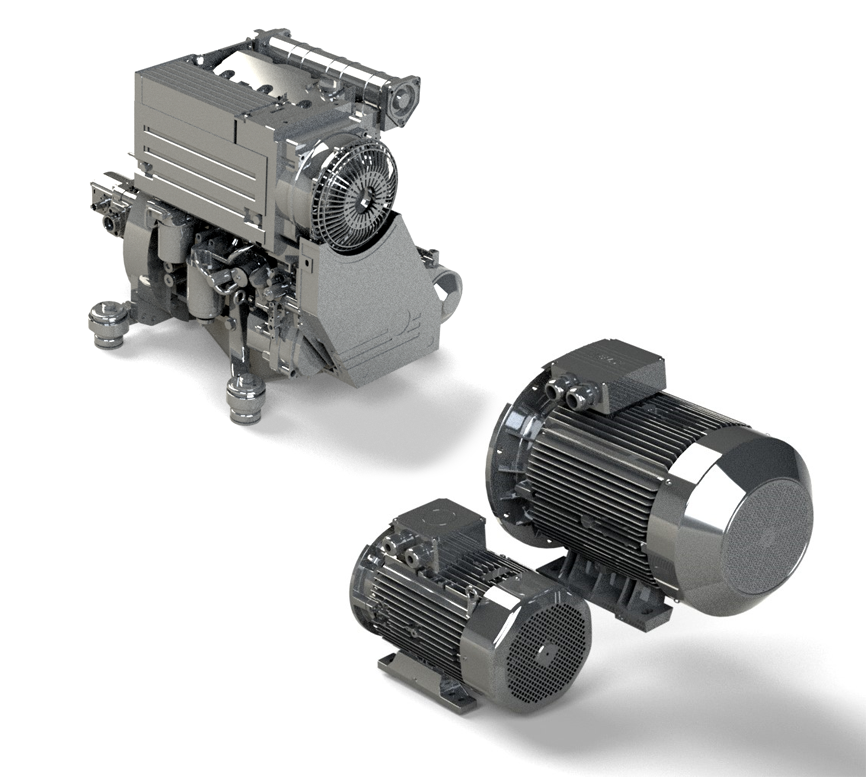

Diesel Engine

^{Model : DEUTZ EU Stage IIIA / US Tier 4 i}

^{Engine Power : 31,2 kW (42 hp) @2300 rpm}

^{Max Torque : 137 Nm (101.05 ft-lb) @ 1700 rpm}

^{Cooling System : Oil-cooled}

Electric Motor

^{Functions control ;}

^{Power : 22 kW (29,48 hp) @ 1450 rpm}

^{Motor Supply Voltage & Frequency : 380 V – 50 Hz}

^{Efficiency Class : IE3 - IE4}

^{Air Compressor ;}

^{Power : 55kW (73.7 hp) @ 3000 rpm}

^{Motor Supply Voltage & Frequency : 380 V – 50 Hz}

^{Efficiency Class : IE3 - IE4}

^{Cooling : IE3 Electric Motor 2.2 kW (3hp) @ 1500 rpm}

^{Zero emission while drilling !}

Marmorok EC can also be called as electric drill rig and it has ability to drill with zero emissions. Ensures higher energy efficiency, lower noise emissions and optimal operational precision.
Minimal environmental impact !

1- Most efficient power

The powerful DEUTZ diesel engine gives smooth and vibration-free operation with low noise and emission level, featured with high torque. Rig can also work with 22 kW electric motor. Operator can use diesel or electric power for tramming and drilling functions according to site conditions and for fuel economy.

On Marmorok EC , air compressor driven by 55 kW (73.7hp) new generation electric motor consume low electric energy while drilling.

IE3 – Premium Efficiency
IE4 as an option – Super Premium Efficiency

2- Fuel economy with electric

3- Easy to maintain and service.

Easily accessible service and maintenance points contribute to the ease of engine service.

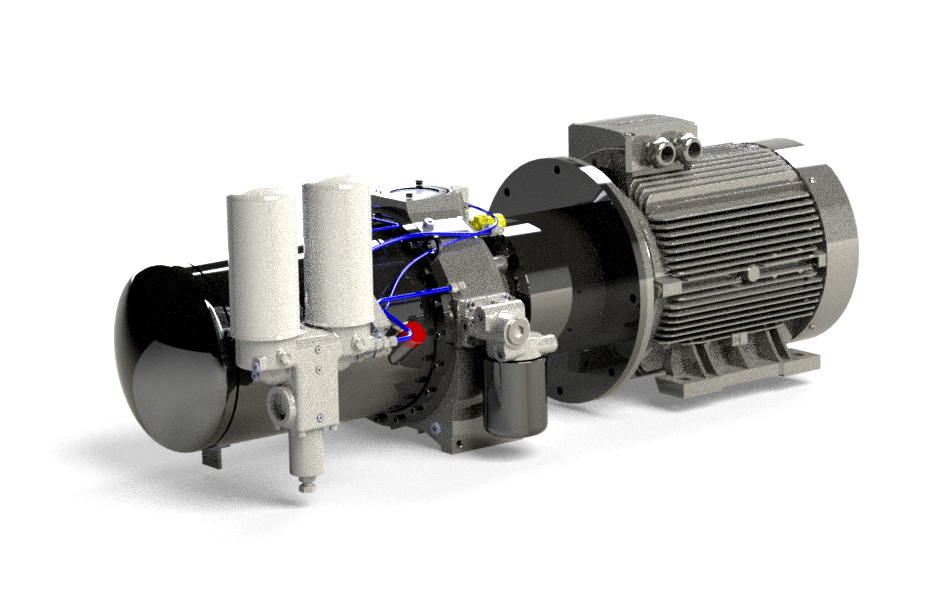

Onboard Air Compressor

^{Working Overpressure Max. : 12.5 bar (181 psi)}

^{Max. Air Delivery : 7 m3/min (247 cfm)}

^{Drive System : Electric Motor}

^{Ultimate efficiency}

Marmorok EC equipped with Bauer Rotorcomp compact unit air compressor. It is an oil-injected screw compressor module that integrate the main parts of a compressor system and provide optimum operation reliability with ultimate efficiency and reduced noise through high volumetric output.

* It has thermally optimized oil injection system.
* Improved suction port efficiency giving reduced internal losses.

** Low power consumption due to;
Optimized torque characteristics and reduced internal friction. Improved outlet port with lower pressure losses.

** Reduced noise and low vibration due to;
Smooth rolling of the rotors with new ROLLING PROFILE® .
Optimized outlet port.

1- High operation reliability

Designed for continuous operation.

2- Compact design

Optimized compact design with very low space requirements.

3- Simplified service and maintenance

All components are easily accessible from one side without special tools.

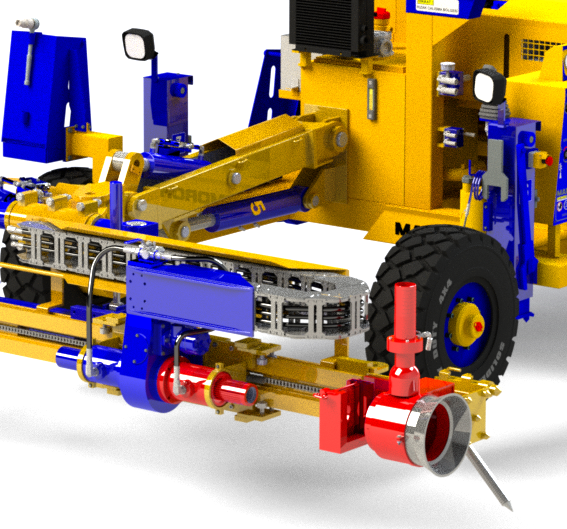

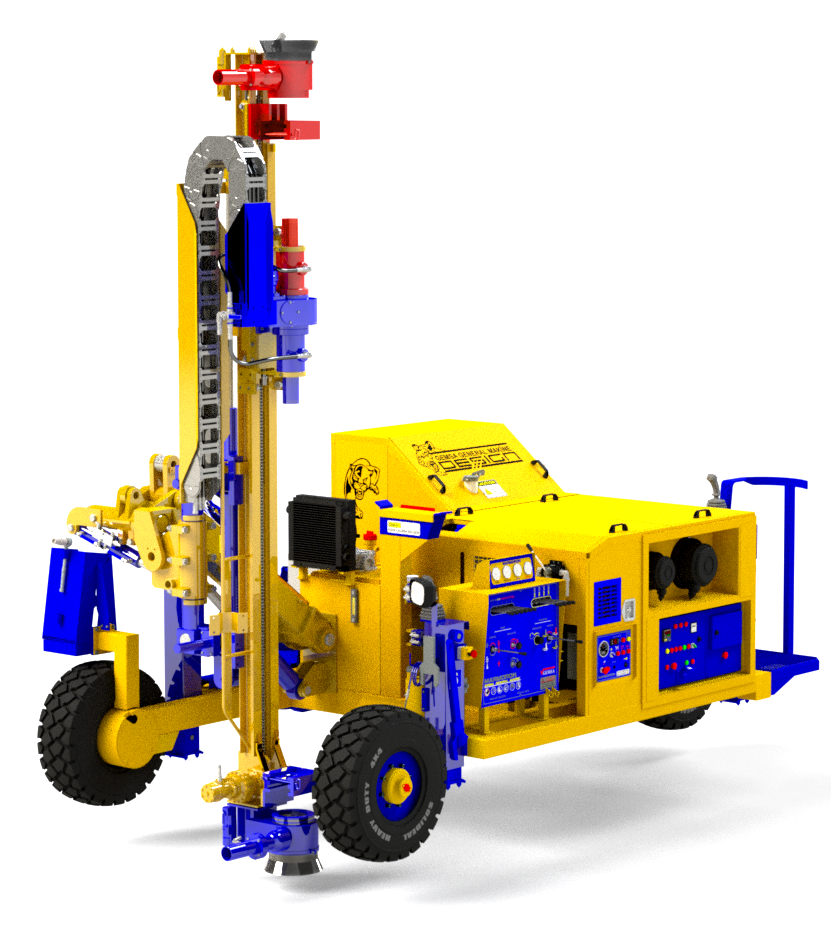

Drill Mast & Feed System

^{Drill Mast Length : 4.020 mm (13,2 ft)}

^{Feeding Stroke : 2500 mm (8,2 ft)}

^{Fast Feeding Down Speed : 30 m/min (98,43 ft /min)}

^{Pull Back Force : 25 kN (5.620 lbf )}

^{Rod Length : 2 mt (6,56 ft)}

Drill Head - Rotation

^{Working Pressure Max. : 150 bar (2175 psi)}

^{Drill Head Torque : 1020 Nm ( 752 lbf ft)}

^{Drill Head Rotation Speed : 0-100 rpm}

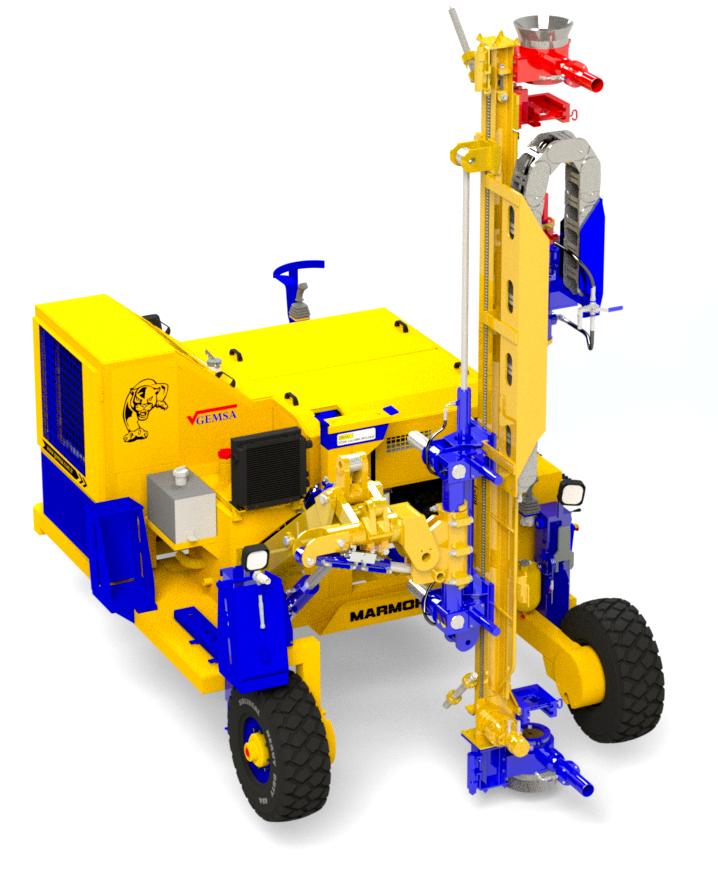

^{Built for Tough !}

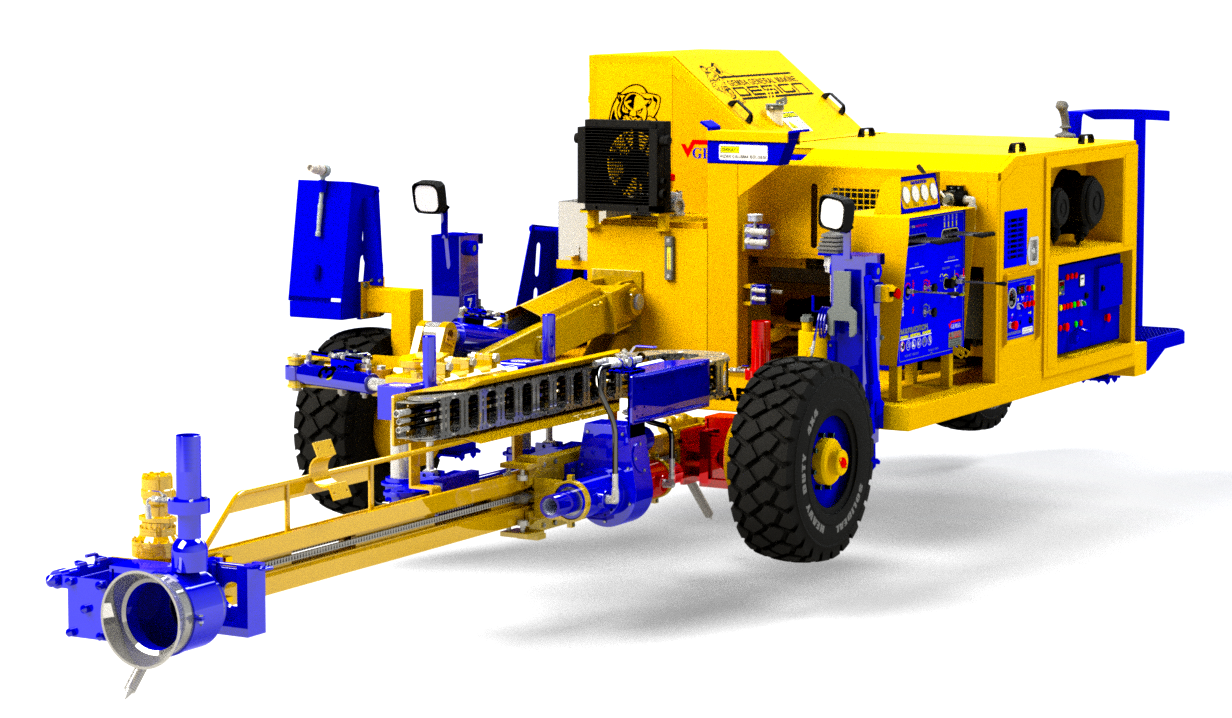

Easy to set up the rig with its versatile and flexi-boom structure. This Gemsa design boom structure, gives fast and secure drilling from vertical to horizontal ( with minimum ground clearance ) , inclined and even face drill to drill surface.
Robust mast structure can be easily accessed and maintained. Operator has excellent accessibility for minor and major maintenance work.

GEMSA DW Model Drill Head is a modular , compact design for maximum flexibility and with easy interchangeability of individual components. It can drill in both ways. It is based on proven and tried technology with simple design, which ensures continuous and uninterrupted operation ,even in the harshest conditions.

1- Longevity for all conditions !

Your new work mate ensures continuous and uninterrupted operation with its improved safe working environment, even in the harshest conditions.

2- Sensitive control !

Fine control of drilling functions, greater flexibility with highly efficient hydraulics.

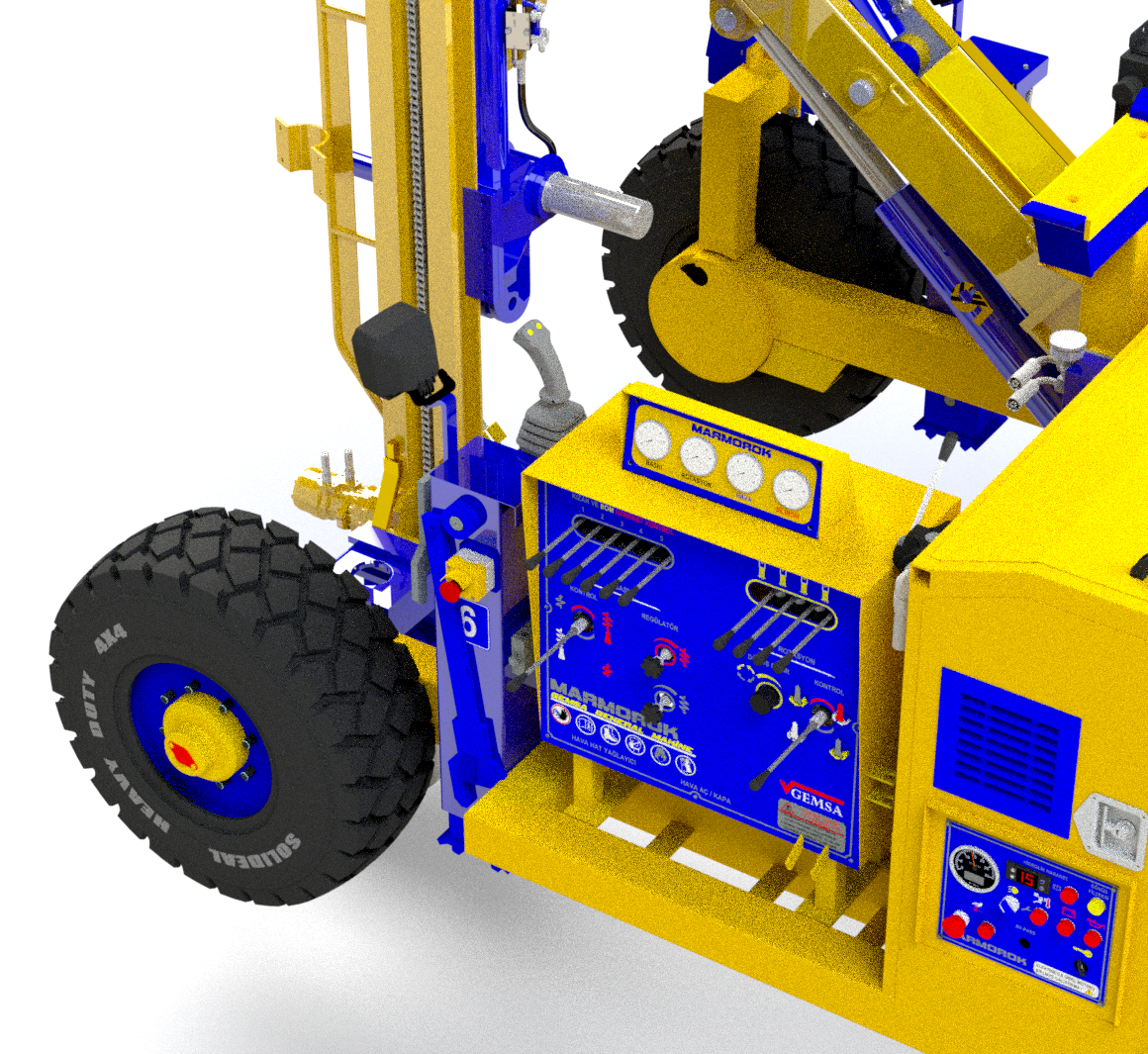

Machine Controls

^{Drilling : Hydraulic -Manuel Control}

^{Tramming : Hydraulic Pilot Control}

^{Tramming : Radio Remote Control (Optional)}

^{Dust Collector: PLC control}

^{Smart Dust-Clean System}

Marmorok EC has optional dust collector system to reduces the impact on the surrounding environment while lowering running costs.

System cleans each filter independently and continuously during the drilling operation. The suction capacity remains regardless of drill rod length and rock conditions.

During drilling sequence the stopper valves are open to let air through the filters and reach the required suction. On certain intervals one valve closes and a short air pulse is introduced in the closed filter section to clean the filter. After the clean-sing sequence both valves are open again until the next clean-sing sequence comes in action on next filter.

1- Handy & Easy to Operate !

Rig is uncomplicated and user friendly with ergonomic layout control panel simple to operate and maintain, provides increased levels of safety and operational flexibility with low overall cost of ownership.

2- Ergonomic design

Your new work mate increase the driller’s comfort and support a safer environment to greater work output.

3- Fine control of drilling functions

Greater flexibility with highly efficient hydraulic components.

4- Smooth tramming !

Rig can move quickly and steady over the most rough terrain , has greater maneuverability. Ease of relocating the drills between drill sites. For long tramming on site , gearboxes have manual brake release, and gives advantage for towing purpose. Traction can control from back operator standing platform (1) and near drill control panel (2) gives advantage to position rig for drilling.

5- Open in-line design

All components very accessible for fast and safe servicing.

Marmorok EC ( Benefits )

1- Ergonomic design

Your new work mate increase the driller’s comfort and support a safer environment to greater work output.

• Ergonomic user interface,
• Low noise level and vibration-free design,
• Excellent visibility on drill site,
• Daily & weekly maintenance points easily accessible,
• Efficient led lighting,

2- Eco-friendly and Economic

It has ability to drill with zero emissions. Ensures higher energy efficiency, lower noise emissions and optimal operational precision. Minimal environmental impact !

• Diesel engine , low fuel consumption and emission,
• Electric powered air compressor ,
• Ambient control of oil cooler ,
• Long lifetime for drilling tools,
• Long lifetime for components,
• Efficient led lighting,

3- Most efficient power

4- Easy to learn and operate

5- Worldwide after-sales support

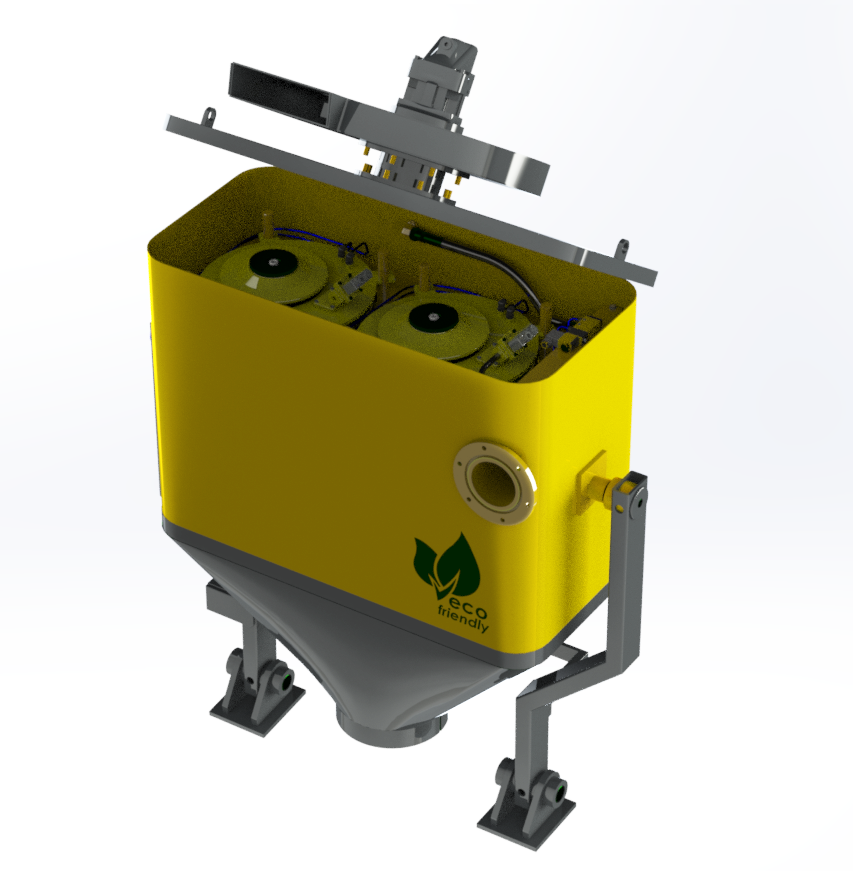

Optional Dust Collector System

Gemsa model hydraulic & PLC control dust collector, designed to handle high volume dust loads. Its 30 year experience dust collector system can be assemble on rig deck.

Optional Foam & Water Pump

Gemsa model pneumatic foam & water pump can be use (if dust collector not assembled) to supress dust while drilling.

Optional Hydraulic Rod Keys

Hydraulic control rod keys can be used for safe and secure rod changing operations.

Boost your productivity !

* Quick access to main hydraulics and power pack components make maintenance procedures much more simple.
* Well suited to large-scale production work in marble quarries. Rig has GEMSA DW Model Drill Head can drill in both ways. It is designed to increase productivity and save time.
* Easy to operate Marmorok EC by its ergonomic design manual control panel.

Compact Design- Options to Improve your drill rig !

Extensive range of standard and optional features to increase your productivity!

The Tier 4i powerful DEUTZ diesel engine gives smooth and vibration-free operation with low noise and emission level, featured with high torque.

Deutz Tier 4i - Diesel Standard equipment on EC

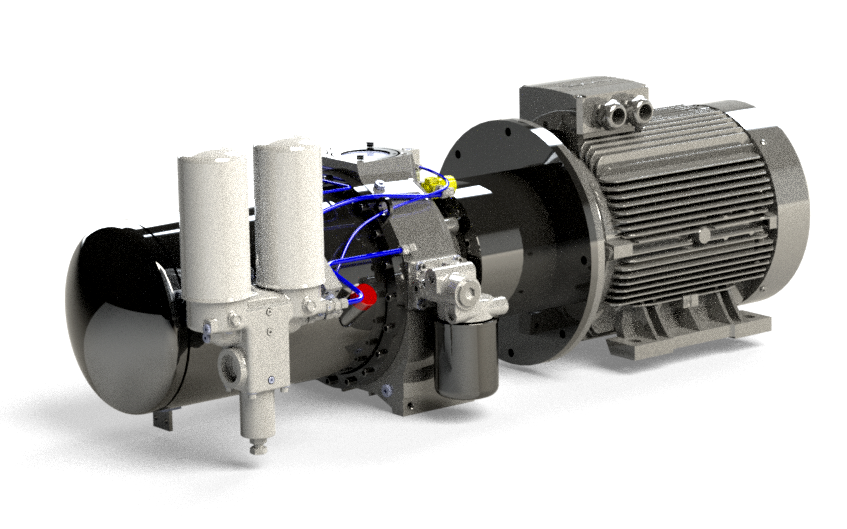

Oil-injected screw compressor module that provide optimum operation reliability with ultimate efficiency and reduced noise through high volumetric output.

Bauer Rotorcomp AC. Standard equipment on EC

GEMSA DW Model Drill Head is a compact design for maximum flexibility and with easy interchangeability. Increased torque then other versions.

High Torque Drill Head Standard equipment on EC

Hydraulic & PLC control dust collector, designed to handle high volume dust loads. Its 30 year experience dust collector system can be assemble on rig deck.

Dust Collector System Optional equipment on EC

Gemsa design, side rod magazine. Enough room for 10 pcs - 2 mt long drill rods. Moduler design , can be disassemble for transport.

Rod Mag. Standard equipment on EC

Ergonomic layout control panel with air compressor process controller display . It is simple to operate. Excellent visibility on drill site.

Ergonomic Control Panel Standard equipment on EC
