Enormous crushing and cutting power Concrete Clamp Types !

The concrete crushers are Darda solution for a wide range of demolition and gutting work. The compact dimensions enable easy access inside buildings, hard-to-reach work areas and narrow spaces - also with regard to the permissible load-bearing capacity. In addition, they guarantee effective and safe work even during ongoing operations or in busy environments, as significantly lower emissions in terms of noise levels, shocks or vibrations occur compared to other demolition methods.

Best power-to-weight ratio on the market. Thanks to the robust booster system made by Darda, these have enormous breaking power despite their compact design and low weight. They are therefore suitable for small carrier devices for which conventional pliers are too heavy. With the large opening width, they can break off very thick concrete parts and also manage hard and heavily reinforced concrete, which is otherwise only possible with much larger pliers.
All concrete cutters are equipped with cutting inserts as standard, which enable the cutting and separating of reinforcing steel in reinforced concrete. The concrete cutters can also be easily and quickly further specialized for the respective demolition project using additional options.

Concrete CLAMPS


CC260 - Clamps

Weight :                                                                       74 kg

Opening width :                                                    250 mm

Recommended carrier weight :                        0.7 - 1.2t

Refractive power, max. :                              220 kN (22 t)

Cutting capacity, max. :                                 1x Ø 16 mm


Small carrier devices in confined spaces !

The compact and powerful concrete crusher from Darda shows its strengths especially in interior demolition in very confined spaces, during ongoing operations or in busy environments, but also as an all-round concrete crusher in many other applications.

Work effectively and safely with significantly lower emissions compared to other demolition methods in terms of noise levels, shocks and vibrations!

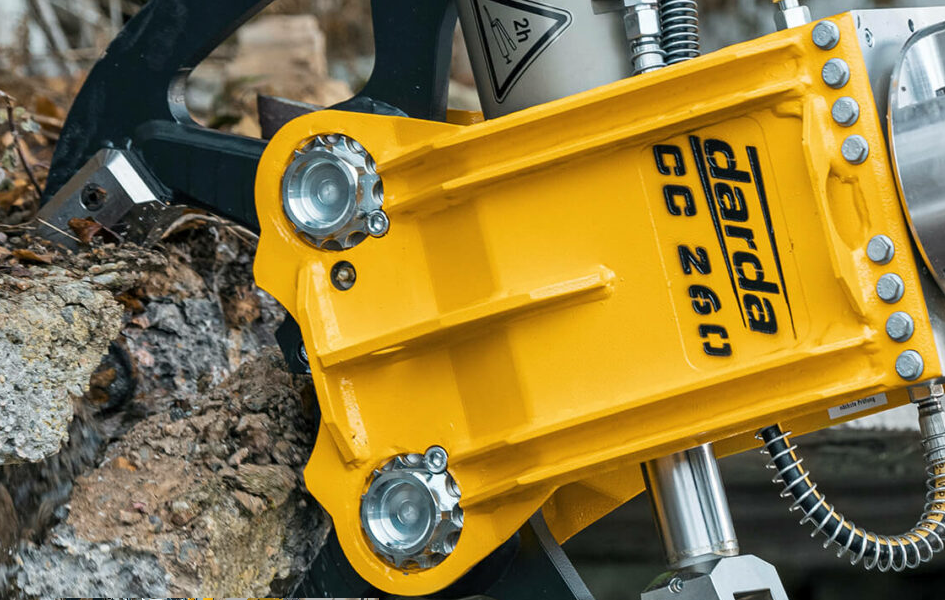

clamp 2

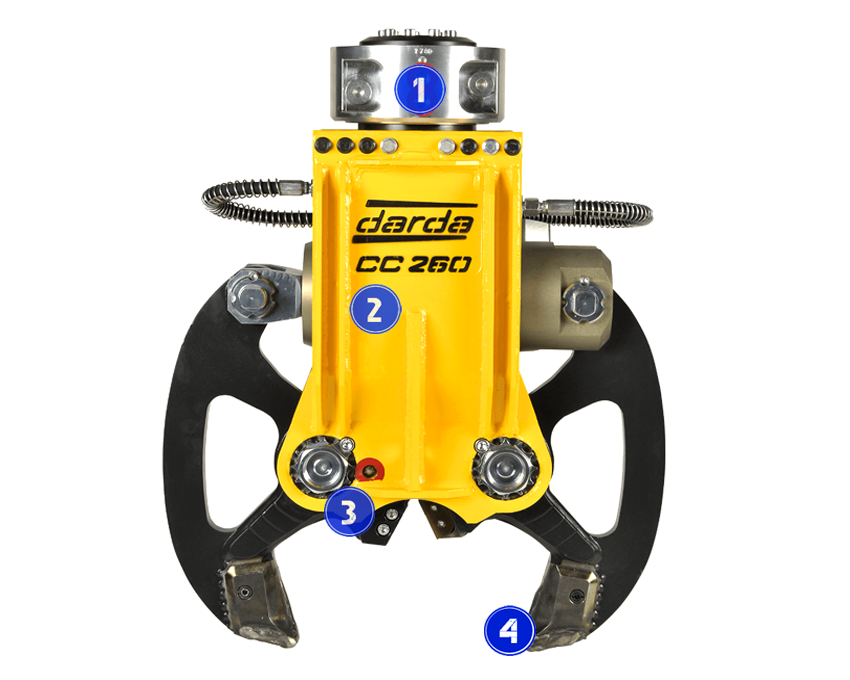

clamp 1
1- Pivot bearing for 360° rotation

For mechanical positioning.

2- Pressure intensifier inside !

Full crushing power is always guaranteed regardless of the input pressure of the carrier device.

3- Replaceable cutting edges

Durable, robust cutting blades for strong reinforcements.

4- Replaceable breaking tips

Property rights: registered design. Increased productivity by reducing machine downtime and reducing maintenance costs for time-consuming build-up welding.


CC340 - Clamps

Weight :                                                                      150 kg

Opening width :                                                    343 mm

Recommended carrier weight :                        1.5 - 2.7t

Refractive power, max. :                              360 kN (37 t)

Cutting capacity, max. :                                 1x Ø 30 mm


37 t Crushing , 97 t Cutting force

The compact and powerful concrete crusher from Darda shows its strengths especially in interior demolition in very confined spaces, during ongoing operations or in busy environments, but also as an all-round concrete crusher in many other applications.

Work effectively and safely with significantly lower emissions compared to other demolition methods in terms of noise levels, shocks and vibrations!

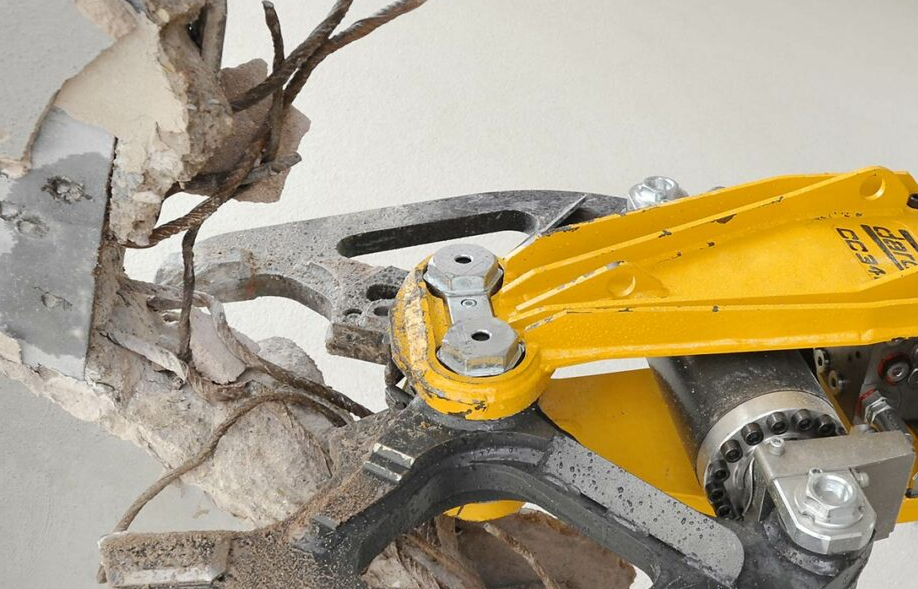

clamp 4

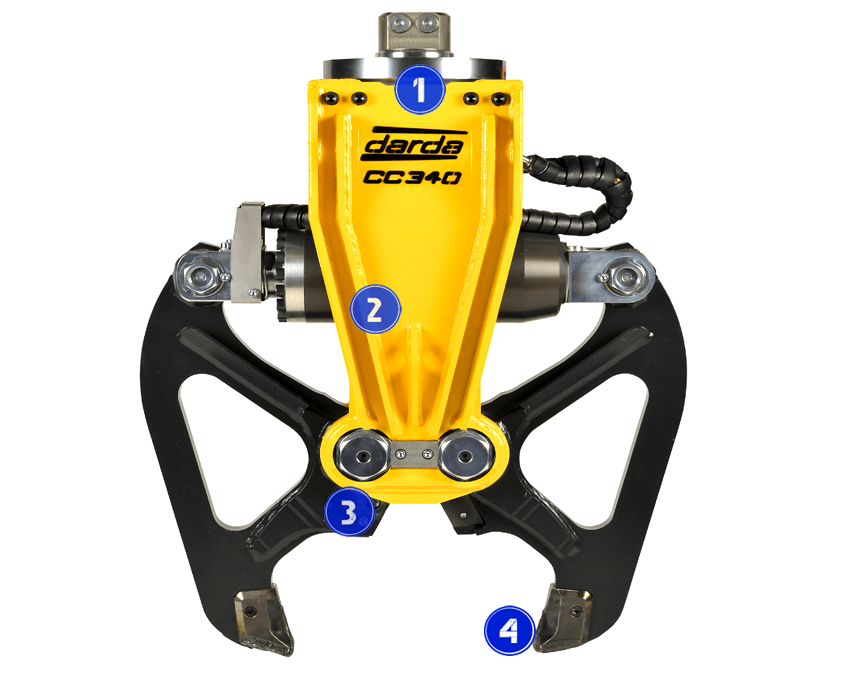

clamp 3
1- Pivot bearing for 360° rotation

For mechanical positioning.

2- Pressure intensifier inside !

Full crushing power is always guaranteed regardless of the input pressure of the carrier device.

3- Replaceable cutting edges

Durable, robust cutting blades for strong reinforcements.

4- Replaceable breaking tips

Property rights: registered design. Increased productivity by reducing machine downtime and reducing maintenance costs for time-consuming build-up welding.


CC440 - Clamps

Weight :                                                                      235 kg

Opening width :                                                     440 mm

Recommended carrier weight :                        2.5 - 4.5t

Refractive power, max. :                                431 kN (44 t)

Cutting capacity, max. :                                  1x Ø 30 mm


The New Generation Arrives !

The compact and powerful concrete crusher from Darda shows its strengths especially when it comes to interior demolition in very confined spaces,
during ongoing operations or in busy environments, but also as an all-round concrete crusher in many other applications.
With significantly lower emissions compared to other demolition methods in terms of noise levels, shocks and vibrations, you can work safely and effectively!

Depending on the type of work to be done, Darda CC440 can be upgraded with a hydraulic rotary drive and additional crushing teeth.

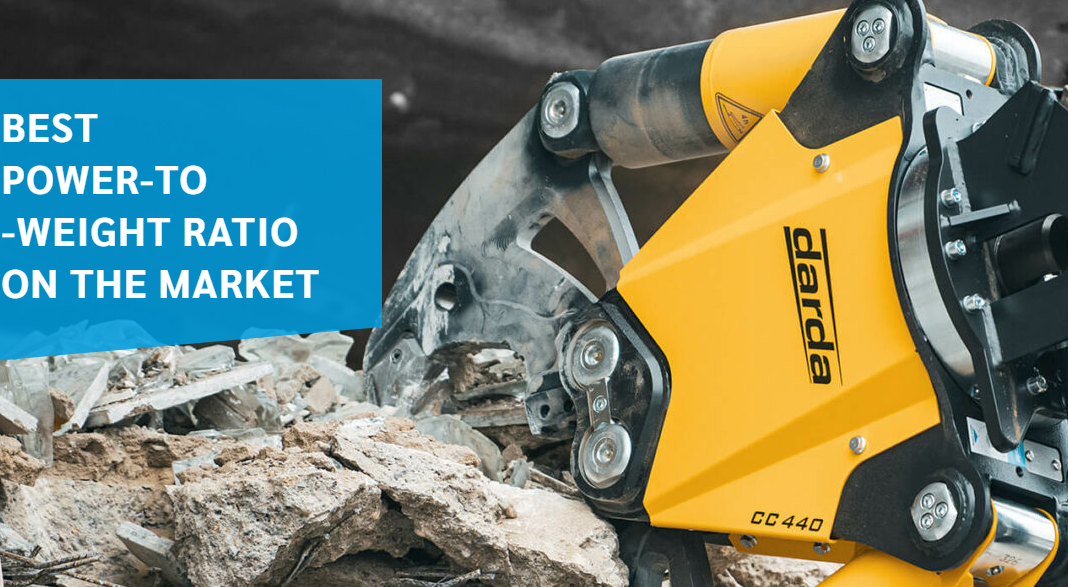

clamp 6

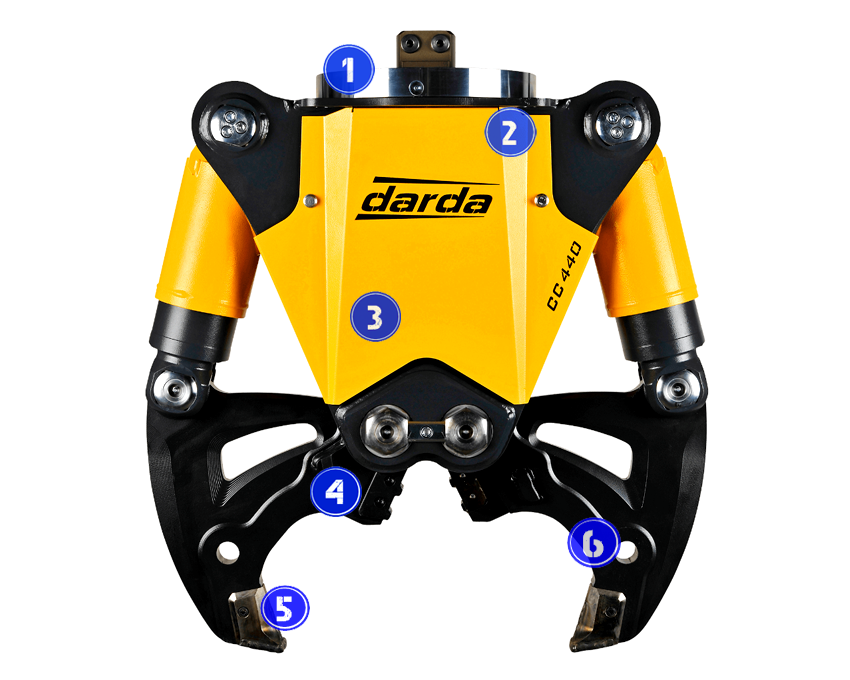

clamp 5
1- Optionally with hydraulic rotary drive

Enables easy, precise and efficient positioning for best results.

2- Pivot bearing for 360° rotation

For mechanical positioning.

3- Pressure intensifier inside

Full crushing power is always guaranteed regardless of the input pressure of the carrier device.

4- Replaceable reinforcement cutting                  edges

Durable, robust cutting blades for strong reinforcements.

5- Replaceable breaking tips

Property rights: registered design. Increased productivity by reducing machine downtime and reducing maintenance costs for time-consuming build-up welding.

6- Optionally with additional crushing teeth

Quickly installed for best results even with thinner material thickness.


CC480 - Clamps

Weight :                                                                       275 kg

Opening width :                                                     460 mm

Recommended carrier weight :                       4 - 6 tons

Refractive power, max. :                               490 kN (50 t)

Cutting capacity, max. :                                  1x Ø 30 mm


Compact & Powerful

The compact and powerful concrete crusher from Darda shows its strengths especially when it comes to interior demolition in very confined spaces,
during ongoing operations or in busy environments, but also as an all-round concrete crusher in many other applications.
With significantly lower emissions compared to other demolition methods in terms of noise levels, shocks and vibrations, you can work safely and effectively!

Depending on the type of work to be done, the Darda CC480 can be upgraded with a hydraulic rotary drive and additional crushing teeth.

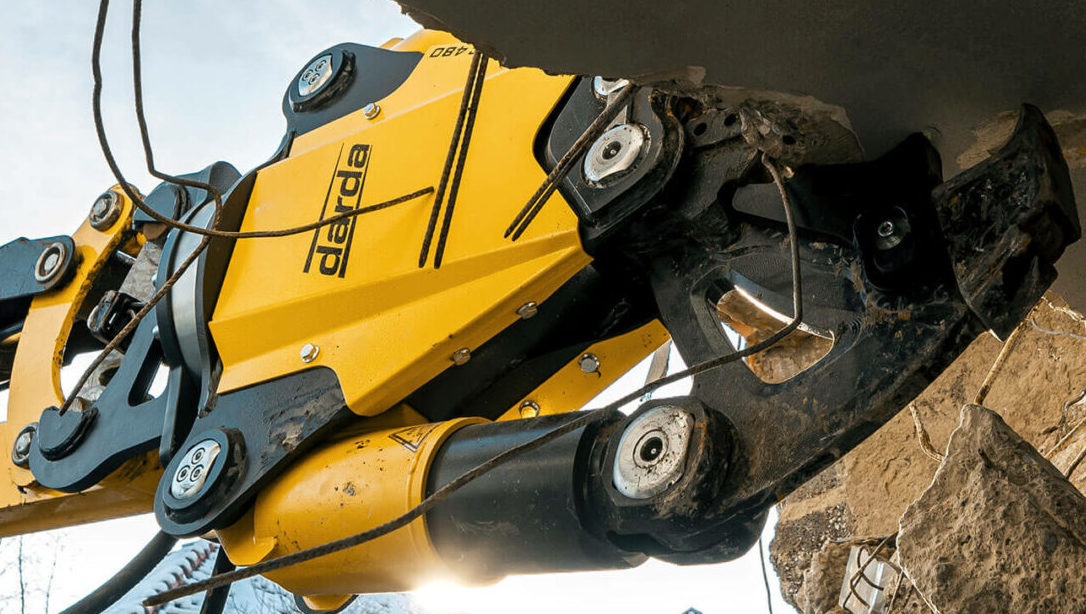

clamp 8

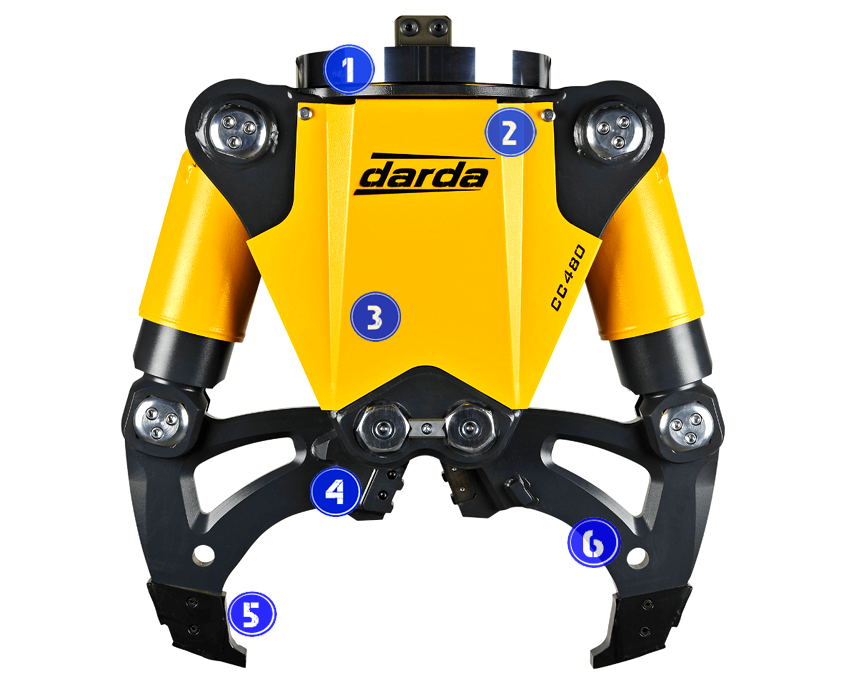

clamp 7
1- Optionally with hydraulic rotary drive

Enables easy, precise and efficient positioning for best results.

2- Pivot bearing for 360° rotation

For mechanical positioning.

3- Pressure intensifier inside !

Full crushing power is always guaranteed regardless of the input pressure of the carrier device.

4- Replaceable cutting edges

Durable, robust cutting blades for strong reinforcements.

5- Replaceable breaking tips

Property rights: registered design. Increased productivity by reducing machine downtime and reducing maintenance costs for time-consuming build-up welding.

6- Optionally with additional crushing teeth

Quickly installed for best results even with thinner material thickness.


CC580 - Clamps

Weight :                                                                       360 kg

Opening width :                                                      565 mm

Recommended carrier weight :                            5.5 - 9t

Refractive power, max. :                               530 kN (54 t)

Cutting capacity, max. :                                  1x Ø 30 mm


Compact & Powerful

The compact and powerful concrete crusher from Darda shows its strengths especially when it comes to interior demolition in very confined spaces,
during ongoing operations or in busy environments, but also as an all-round concrete crusher in many other applications.
With significantly lower emissions compared to other demolition methods in terms of noise levels, shocks and vibrations, you can work safely and effectively!

Depending on the type of work to be done, the Darda CC580 can be upgraded with a hydraulic rotary drive and additional crushing teeth.

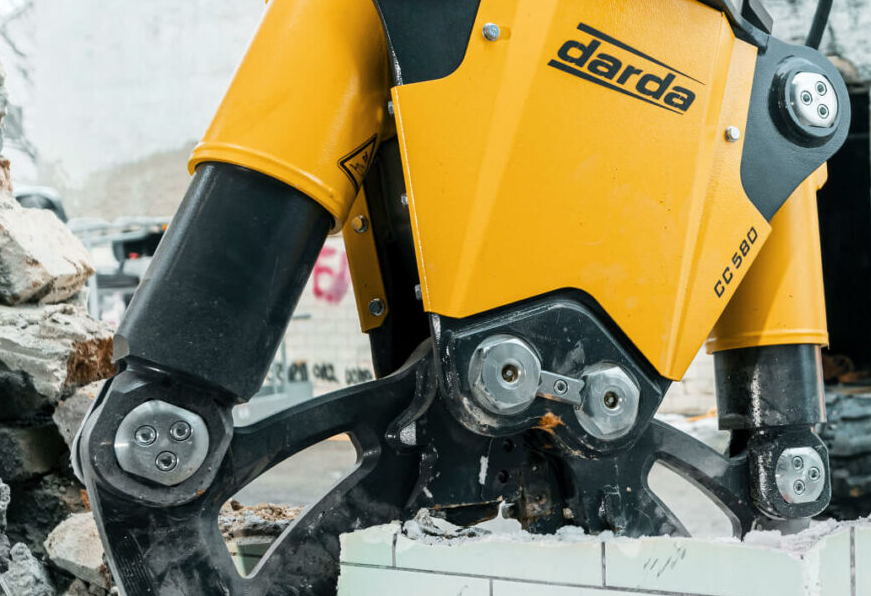

clamp 11

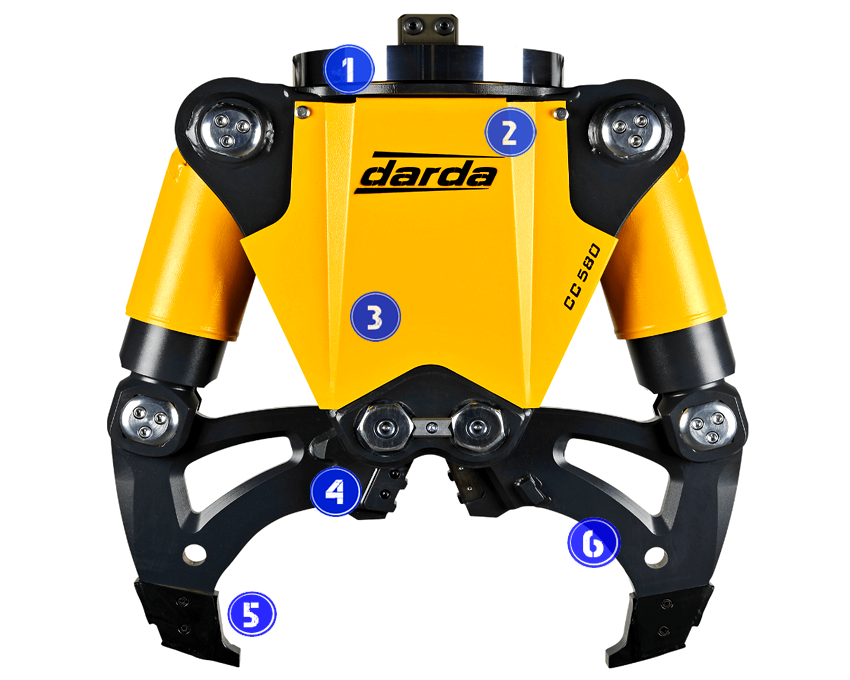

clamp 10
1- Optionally with hydraulic rotary drive

Enables easy, precise and efficient positioning for best results.

2- Pivot bearing for 360° rotation

For mechanical positioning.

3- Pressure intensifier inside !

Full crushing power is always guaranteed regardless of the input pressure of the carrier device.

4- Replaceable cutting edges

Durable, robust cutting blades for strong reinforcements.

5- Replaceable breaking tips

Property rights: registered design. Increased productivity by reducing machine downtime and reducing maintenance costs for time-consuming build-up welding.

6- Optionally with additional crushing teeth

Quickly installed for best results even with thinner material thickness.


CC700 - Clamps

Weight :                                                                       535 kg

Opening width :                                                     650 mm

Recommended carrier weight :                      7 - 15 tons

Refractive power, max. :                               680 kN (70 t)

Cutting capacity, max. :                                  1x Ø 30 mm


Can be converted to Steel Shears

Darda's compact and most powerful concrete crusher is used in particular
for industrial demolition, beams, thick ceilings, pillars and complete dismantling of structures (usually not selectively), but also as an all-round concrete crusher in many other applications.
With significantly lower emissions compared to other demolition methods in terms of noise levels, shocks and vibrations, you can work safely and effectively!

Depending on the type of work to be done, the Darda CC700 can be equipped with a hydraulic rotary drive or with two other versions of crushing teeth (double or multi-crushing teeth). With an optional steel jaw set, this model
can also be used as a steel shear.

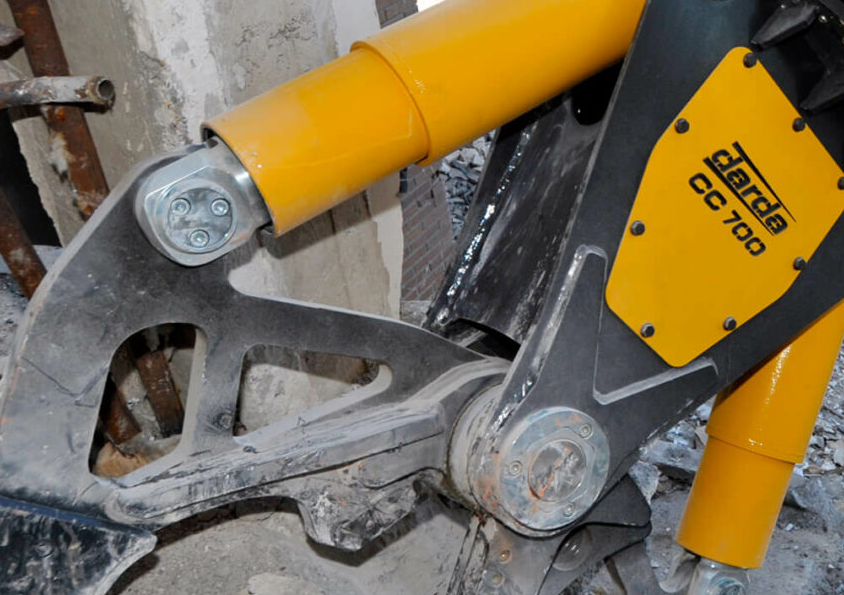

clamp 13

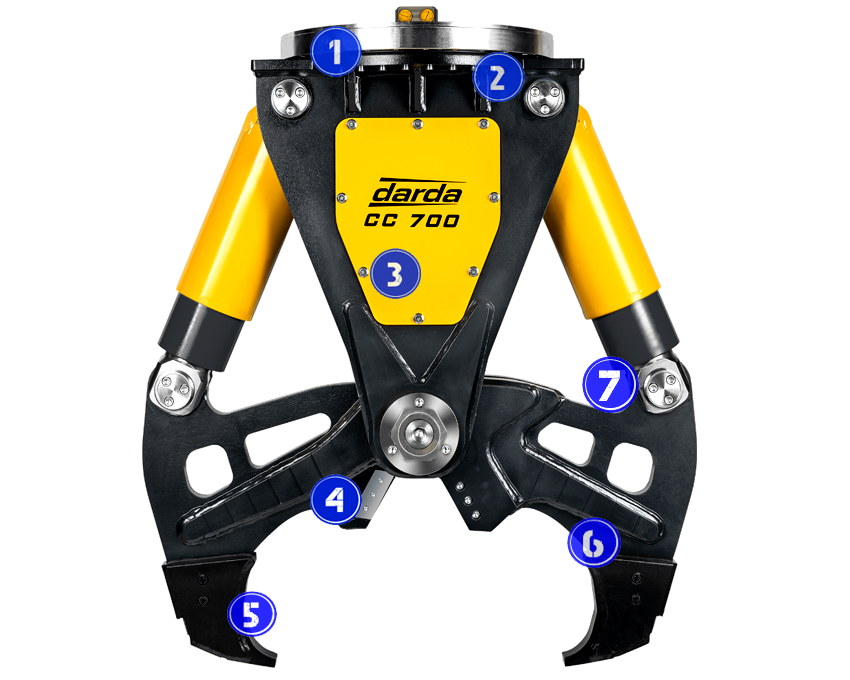

clamp 12
1- Optionally with hydraulic rotary drive

Enables easy, precise and efficient positioning for best results.

2- Pivot bearing for 360° rotation

For mechanical positioning.

3- Pressure intensifier inside !

Full crushing power is always guaranteed regardless of the input pressure of the carrier device.

4- Replaceable cutting edges

Durable, robust cutting blades for strong reinforcements.

5- Replaceable breaking tips

Property rights: registered design. Increased productivity by reducing machine downtime and reducing maintenance costs for time-consuming build-up welding.

6- Optionally double / multi-breaking teeth

Quickly installed for best results even with thinner material thickness.

7- Can be converted to steel shears

With the interchangeable set for steel bits, CC700 can be used optimally.
