Combination Shears HCS8 Types !
The hand-held, hydraulic HCS8 combination shears are equipped with proven blade and pliers technology and are particularly suitable for gutting and controlled demolition of buildings. They can also be used in a variety of other areas. One person can easily handle the compact and lightweight devices. The very powerful combination shears work safely, quickly and productively. The integrated control valve allows the opening and closing to be controlled and locked with precision. The work process can be monitored at all times. They do not cause any dust or vibrations and are extremely quiet. This means that they can also be used indoors without any problems and ongoing operations are not disrupted.

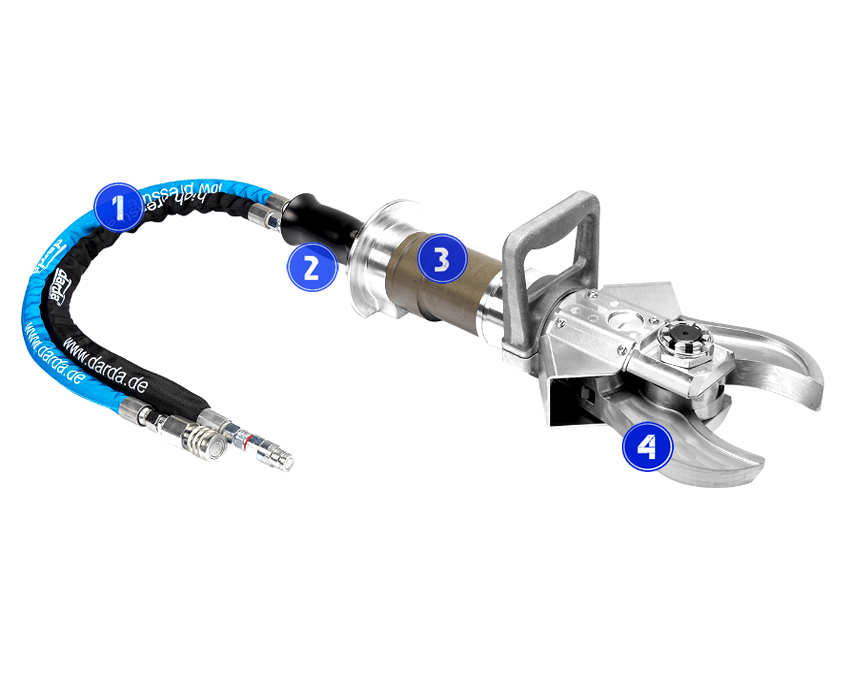

HCS8 J - Combination Scissors
Refractive power : 8.8t
Opening width : 170 mm
Penetration depth : 100 mm
Weight : 17 kg
Length : 715 mm
Handy & Easy to Break Off

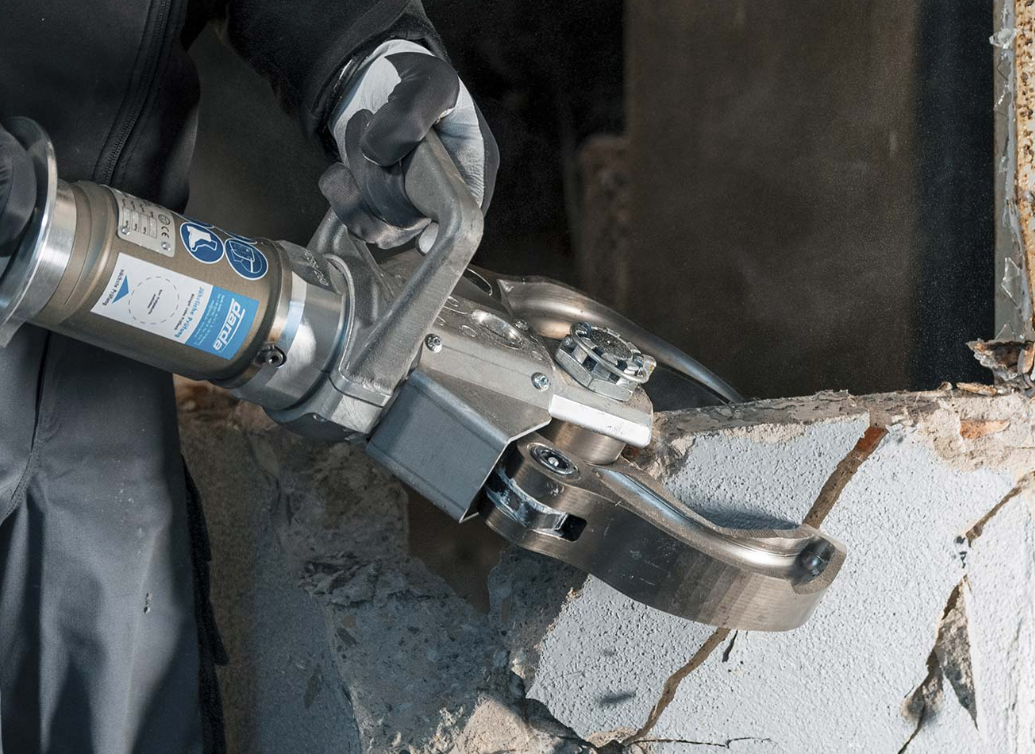

With the HCS8 J concrete clamp, concrete walls up to 15 cm thick can be demolished - depending on the compressive strength of the concrete. Advantageous for the demolition of thin partition walls, facade panels or when renovating prefabricated buildings.
The very powerful combination shears work quickly and productively. One person can easily handle the compact and lightweight device. The integrated control valve allows for sensitive control of the closing and opening.
The work process can be monitored at all times. It causes no dust, no vibrations and is extremely quiet. This means that it can also be used indoors without any problems and ongoing operations are not disrupted.

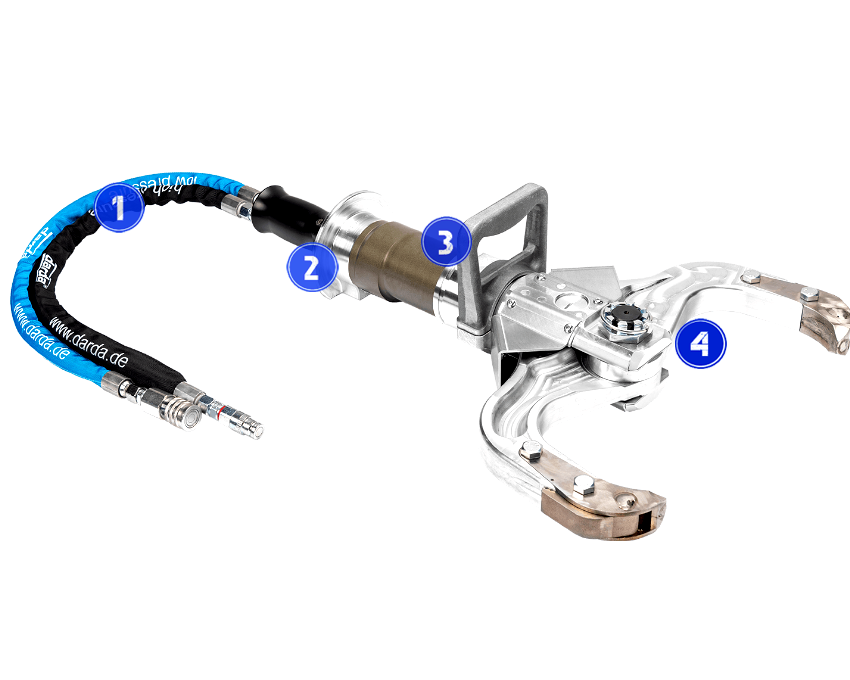

HCS8 B - Combination Scissors
Refractive power : 4.2t
Opening width : 320 mm
Penetration depth : 105 mm
Weight : 16 kg
Length : 795 mm
Easy to Break Off !

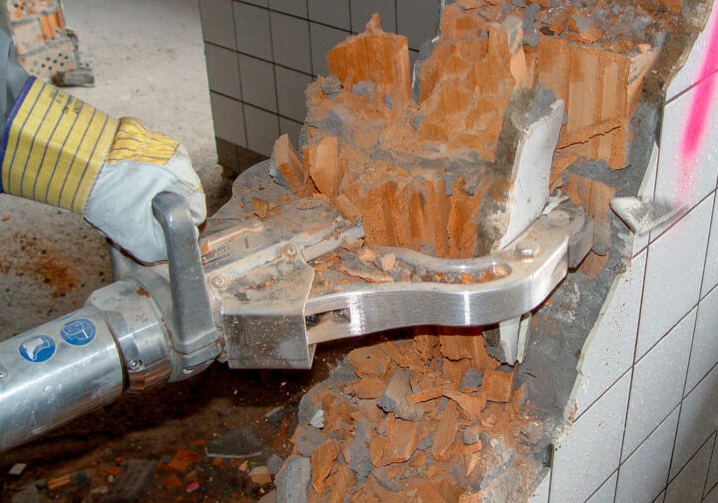

The HCS8 B bricklayer's pliers can be used to break down masonry up to 32 cm thick.
They replace the conventional sledgehammer and are much more effective and very user-friendly thanks to their hydraulic function. The pliers have steel tips that can be easily folded out.
The HCS8 B can also use them to spread a wide variety of materials apart
and, for example, break door and window frames out of the masonry.
The very powerful combination shears work safely, quickly and productively. One person can easily handle the compact and lightweight device. The integrated control valve allows the opening and closing to be controlled and locked with sensitivity. The work process can be monitored at all times.
It does not cause any dust or vibrations and is extremely quiet. This means that it can also be used indoors without any problems and ongoing operations are not disrupted.

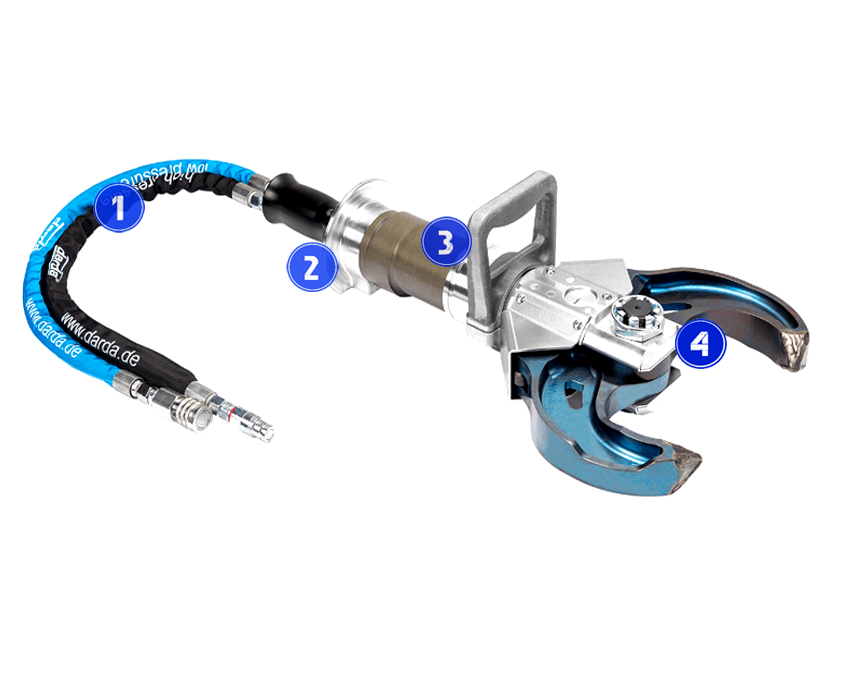

HCS8 S - Combination Scissors
Cutting force : 27.2t
Opening width : 90 mm
Weight : 15 kg
Length : 660 mm
Tough Demolition !
Equipped with the sickle blade set, the HCS8 S can be used to cut pipes, round materials, disused power cables, sheet metal or wooden profiles and steel reinforcements up to Ø 16 mm.
This ensures that the pliers cannot slip off the material being cut. The very powerful combination shears work quickly and productively. One person can easily handle the compact and lightweight device.
The integrated control valve allows for sensitive control of the closing and opening. The work process can be monitored at all times. It causes no dust, no vibrations and is extremely quiet. This means that it can also be used indoors without any problems and ongoing operations are not disrupted.

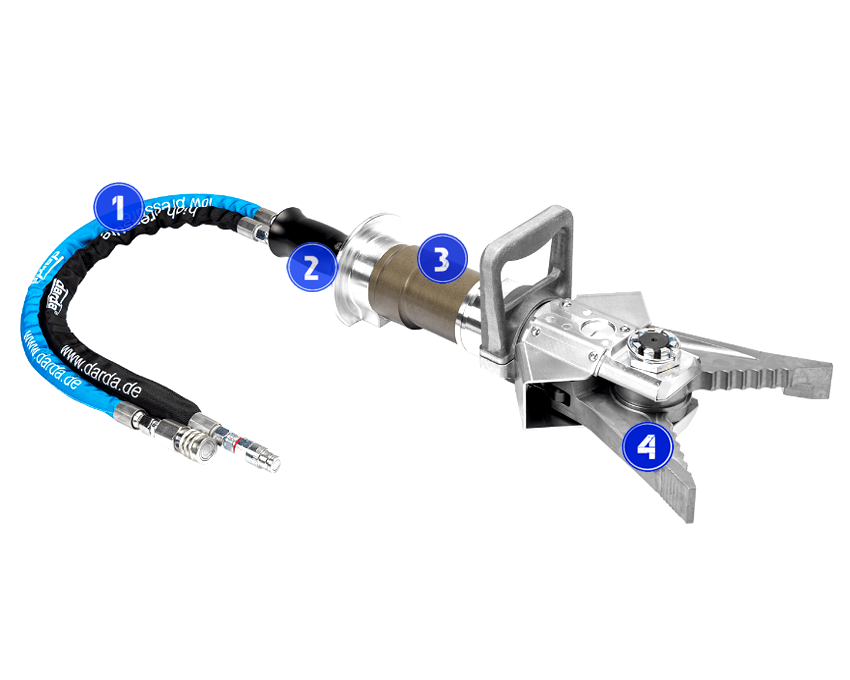

HCS8 C - Combination Scissors
Cutting force : 27.2t
Spread width : 250 mm
Penetration depth : 105 mm
Weight : 15 kg
Length : 720 mm
Make The Difference
In the HCS8 C version, the combination shears are particularly suitable for spreading and breaking open.
Radiators can be spread away from the wall, door frames can be broken out and previously split concrete parts can be spread wide apart. The HCS8 C
also cuts a wide variety of building materials.
The very powerful combination shears work quickly and productively. One person can easily handle the compact and lightweight device. The integrated control valve allows the opening and closing to be controlled and locked with sensitivity. The work process can be monitored at all times. The combination shears do not cause any dust or vibrations and are extremely quiet. This means that they can also be used indoors without any problems and ongoing operations are not disrupted.
Hydraulic Units can be combined with all Combination Scissor Types !
The high-pressure hydraulic units are our power source and the ideal companion for Darda handheld stone and concrete splitting devices, as well as combination shears. Robust, lightweight and compact, with 500 bar system pressure they represent a unique compromise between user-friendliness, reliability and efficiency. Available in four different power systems - portable or mobile - each drive type offers maximum power and safety for the machine and operating personnel and is designed for tough operating conditions. Depending on your requirements and demands, you will find the right solution here!
AP2 - Hydraulic Unit
Weight : 40 kg
Drive type : Compressed air
Displacement volume low pressure stage : 5 l/min
Delivery volume high pressure stage : 1.6 l/min
Oil tank capacity : 5 litres
Safe High Pressure
With the portable compressed air high-pressure hydraulic unit AP2 you can work even in sensitive areas where electric and combustion engines are prohibited.
It is very compact and fits in any car or van. Light and handy, it supplies the Darda handheld demolition equipment with a system pressure of 500 bar.
The robust air motor, equipped with a silencer, has a maintenance unit that ensures the functional reliability and a long service life of the unit. With the pre-assembled distributor, up to 3 devices can be connected and operated
in parallel. Integrated wheels and an extendable handlebar make it easy to transport within the building.
Optional ergonomic carrying aids also make it easier for two people to transport the device. The compressed air-operated high-pressure hydraulic unit is used in sensitive areas where electric and combustion engines are prohibited.
BP2 - Hydraulic Unit
Weight : 45 kg
Drive type : Petrol
Displacement volume low pressure stage : 5 l/min
Delivery volume high pressure stage : 1.6 l/min
Oil tank capacity : 5 litres
Independent High Pressure
With the portable BP2 petrol high-pressure hydraulic unit, you are always ready for use quickly and independent of other sources of power.
It is very compact and therefore fits well in the car or van. Light and handy, it supplies the Darda handheld demolition equipment with a system pressure
of 500 bar.
The Honda Professional engine is characterized by very low fuel consumption. With the pre-assembled distributor, up to 3 devices can be connected and operated in parallel. Integrated wheels and an extendable handlebar make transport within the building easier. Optional ergonomic carrying aids also make transport for 2 people easier.
The petrol-powered high-pressure hydraulic unit is EPA and CARB certified and is equally popular with demolition contractors and rental companies.

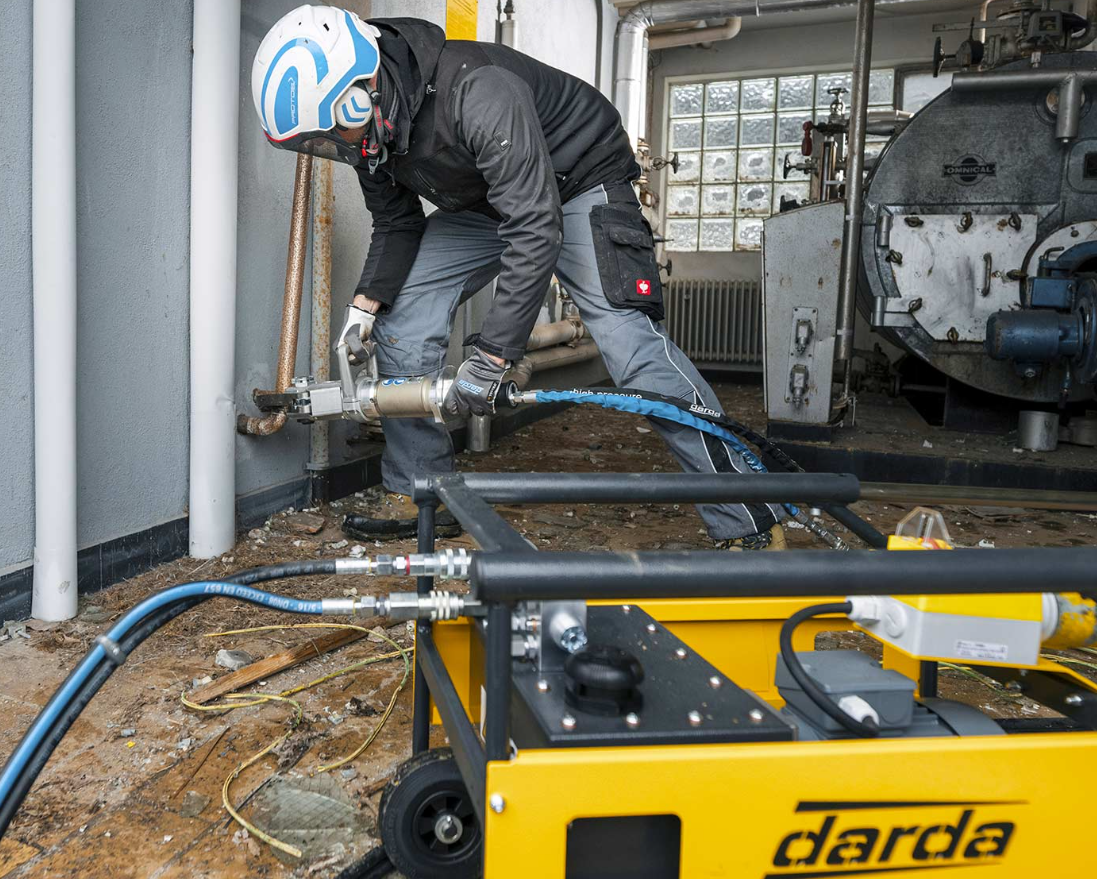

EP3 - Hydraulic Unit
Weight : 55 kg
Drive type : Electric
Displacement volume low pressure stage : 5 l/min
Delivery volume high pressure stage : 1.6 l/min
Oil tank capacity : 5 litres
SEP3 230 V / 400 V – Emission-Free High Pressure up to 500 bar
By combining the two most common electrical connection types, 230 V and 400 V, in one device, the EP3 offers maximum application possibilities.
The type of connection used can be selected using a selector switch. The EP3 is 100% emission-free and is therefore particularly suitable for use indoors. Even the future, more stringent health and safety requirements for exhaust gases and noise can be met. The EP3 is the reliable solution for all areas in which conventional petrol or diesel units are prohibited due to their exhaust emissions.
Darda electrically driven high-pressure unit has two parallel overpressure protection systems. A two-stage pump enables rapid pressure build-up on the connected tool, thereby improving its productivity. Up to 3 devices can optionally be connected to the pre-assembled distributor and operated in parallel. Integrated wheels and an extendable handlebar make it easier to transport within the building.
Suitable suspension eyes are located on the unit for uncomplicated crane transport using a "4-strand sling chain". The clad steel frame ensures the
unit's compactness and optimal protection in rough working conditions. The tools required to use the hydraulic end devices are kept safe in integrated storage box. Robustly designed for tough use in demolition work, the EP3 supplies Darda's handheld demolition equipment with a system pressure of 500 bar. The compact dimensions enable uncomplicated transport to the site.
D4 - Hydraulic Unit
Weight : 137 kg
Weight with electric starter : 156 kg
Drive type : Diesel
Delivery volume high pressure stage : 5.4 l/min
Oil tank capacity : 10 litres
Reliable Safe High Pressure
With the mobile diesel high-pressure hydraulic unit D4, you are quickly ready for operation at any time and independent of other power sources.
This model is for areas where electric or petrol engines are not permitted and where you need a unit that can run continuously for many hours without interruption.
Equipped with a manual start as standard, but also available with an electric start, an optional distributor allows up to 5 stone and concrete splitters to be connected and operated in parallel. It reliably supplies the Darda handheld demolition equipment with a system pressure of 500 bar. The side mounts on the robust and tip-proof steel frame enable the equipment to be transported without any problems, also thanks to the large pneumatic tires. The diesel-powered high-pressure hydraulic unit is certified according to EU 2016/1628 Level 5 and is the ideal companion for daily use, especially in natural stone extraction.
